Three Tier Architecture Cisco

As your company grows, your network becomes more complex.
More users, more buildings, more servers, more traffic.

Without a well-defined design, performance suffers, troubleshooting becomes a nightmare, and scalability is impossible.

To solve this, Cisco built a model that organizes a large network into hierarchical layers: the Three-Tier Architecture.

Think of It Like a Company Building

Imagine a corporate building with three floors, each with a specific job:

• The ground floor is the reception, where employees and visitors enter the building.

• The middle floor is where managers control who goes where and apply company rules.

• The top floor is the executive level, fast and uncluttered, focused only on moving people between buildings.

Each floor has its own purpose, its own rules, and its own equipment.
Your network works exactly the same way.

The Three Layers at a Glance

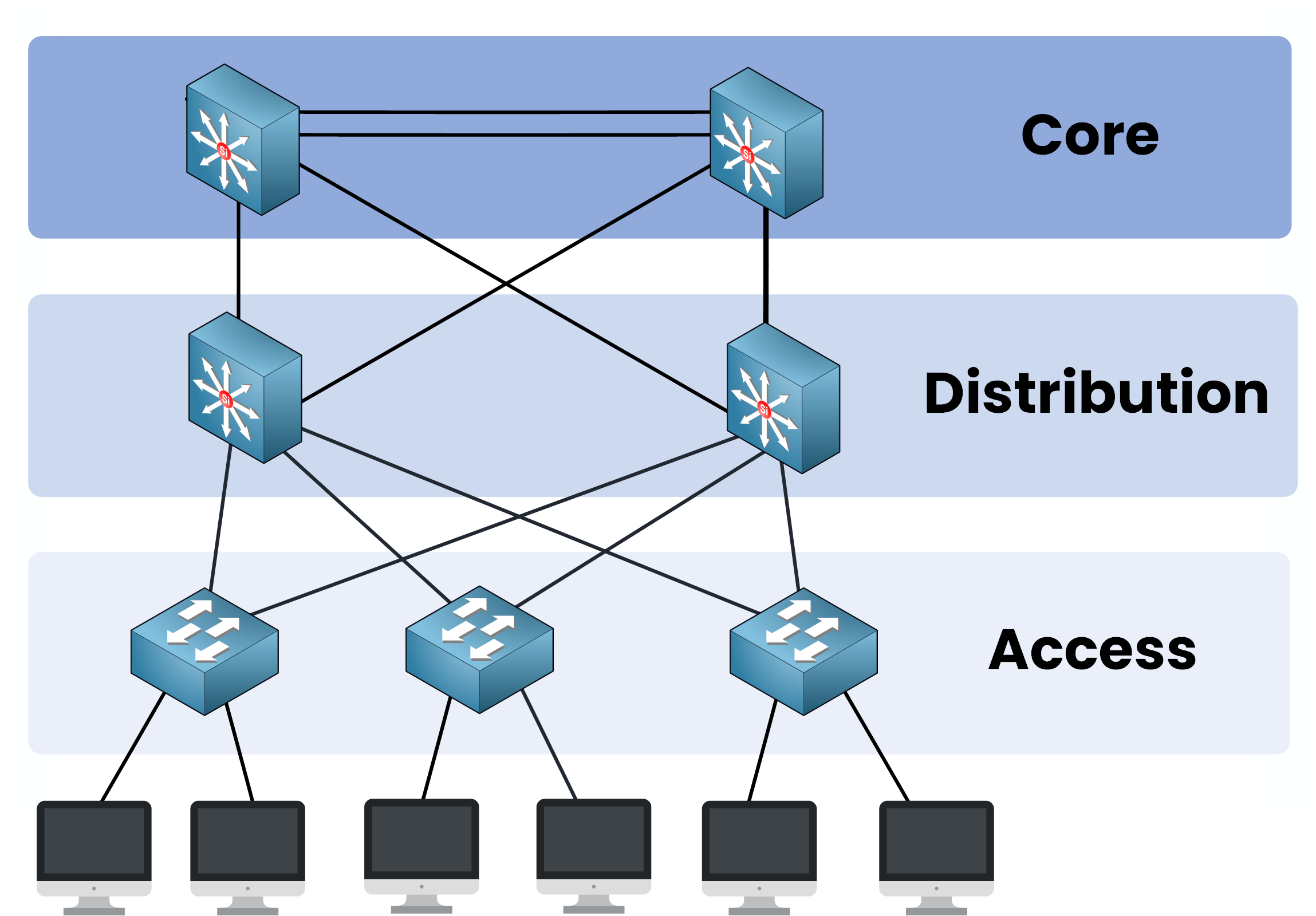

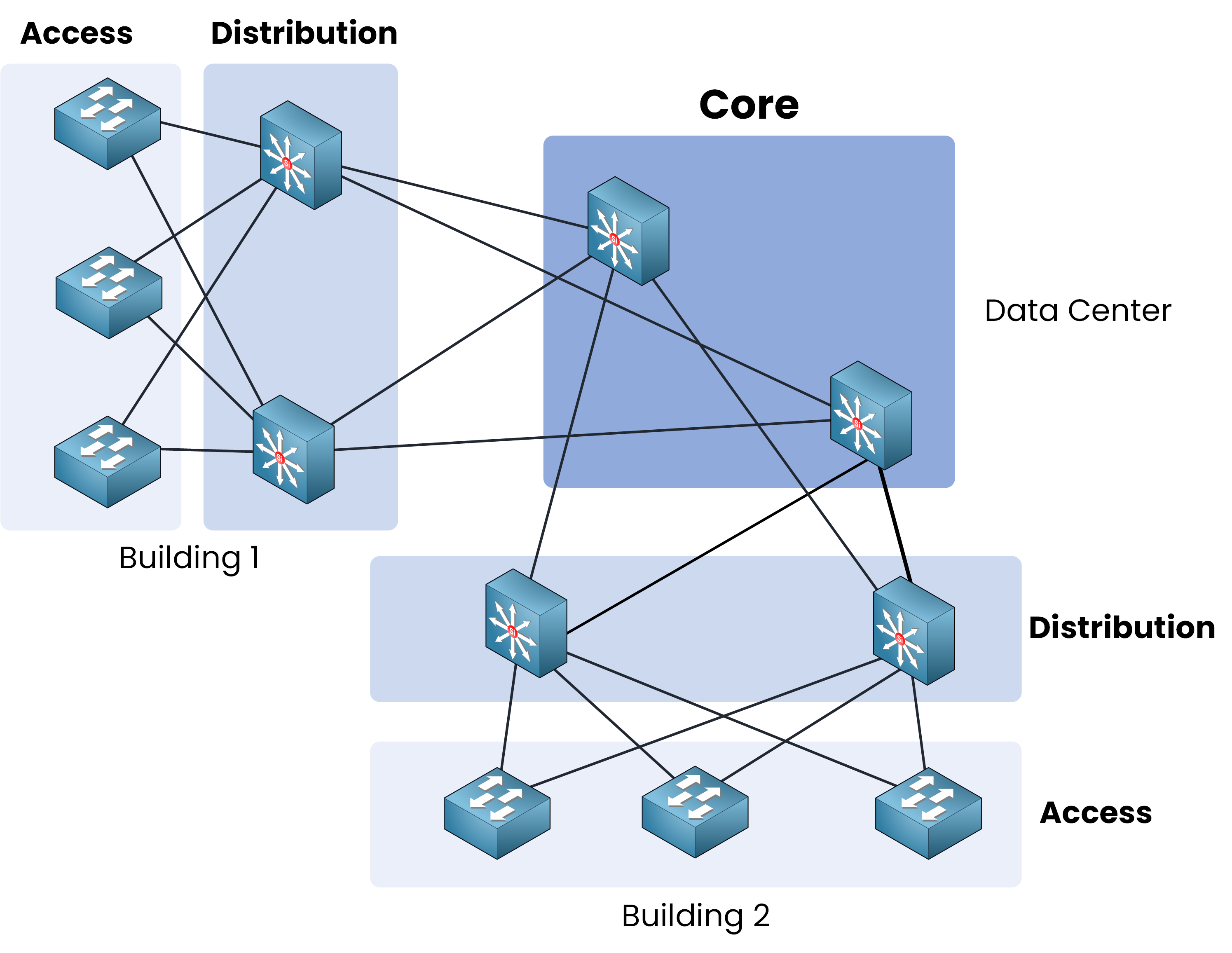

Figure 1 – Three-Tier Architecture: Access, Distribution, and Core layers

The Three-Tier model organizes the network into three distinct layers:

• Access Layer — the reception. Where users plug in.

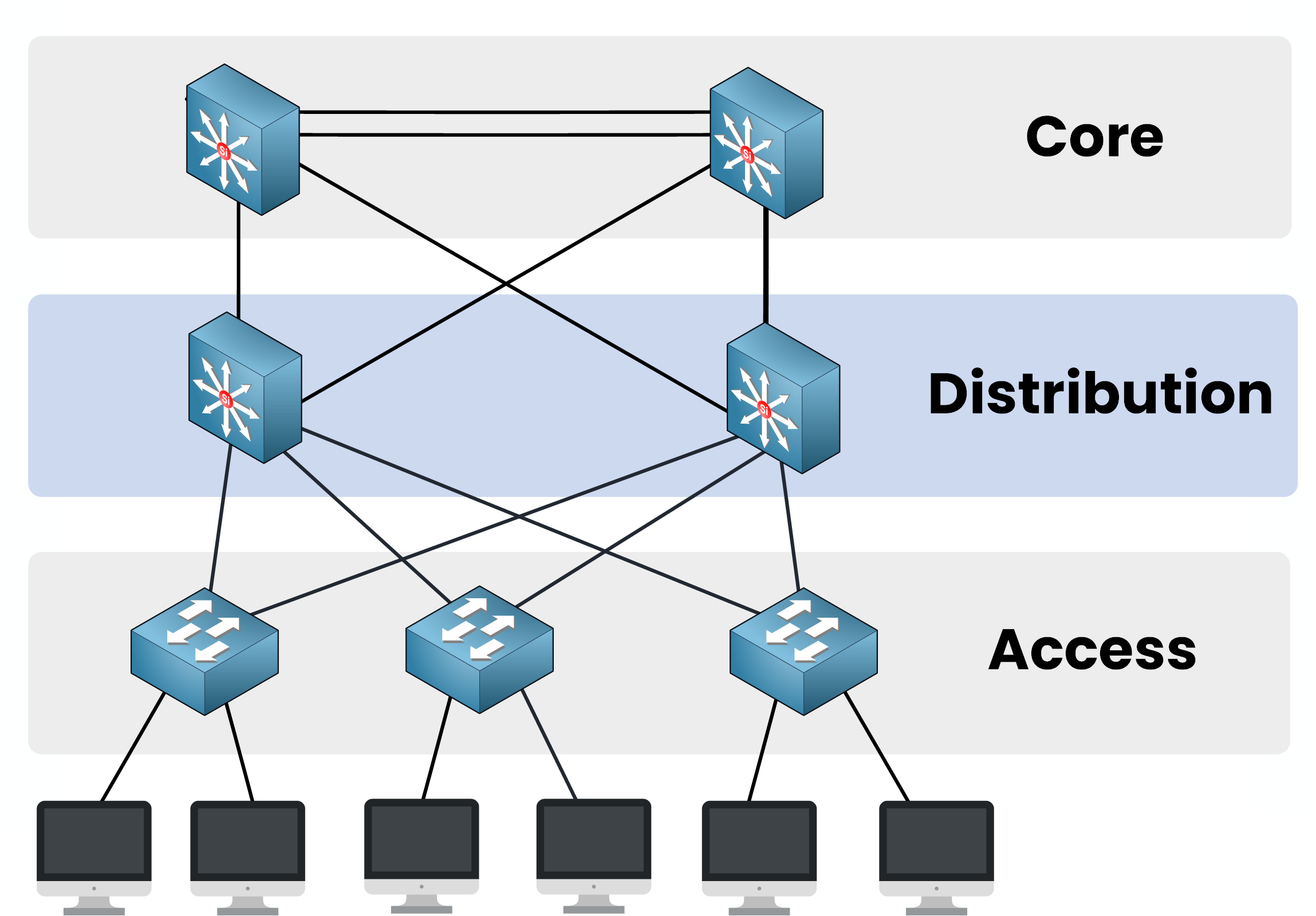

• Distribution Layer — the managers. Where policies are applied.

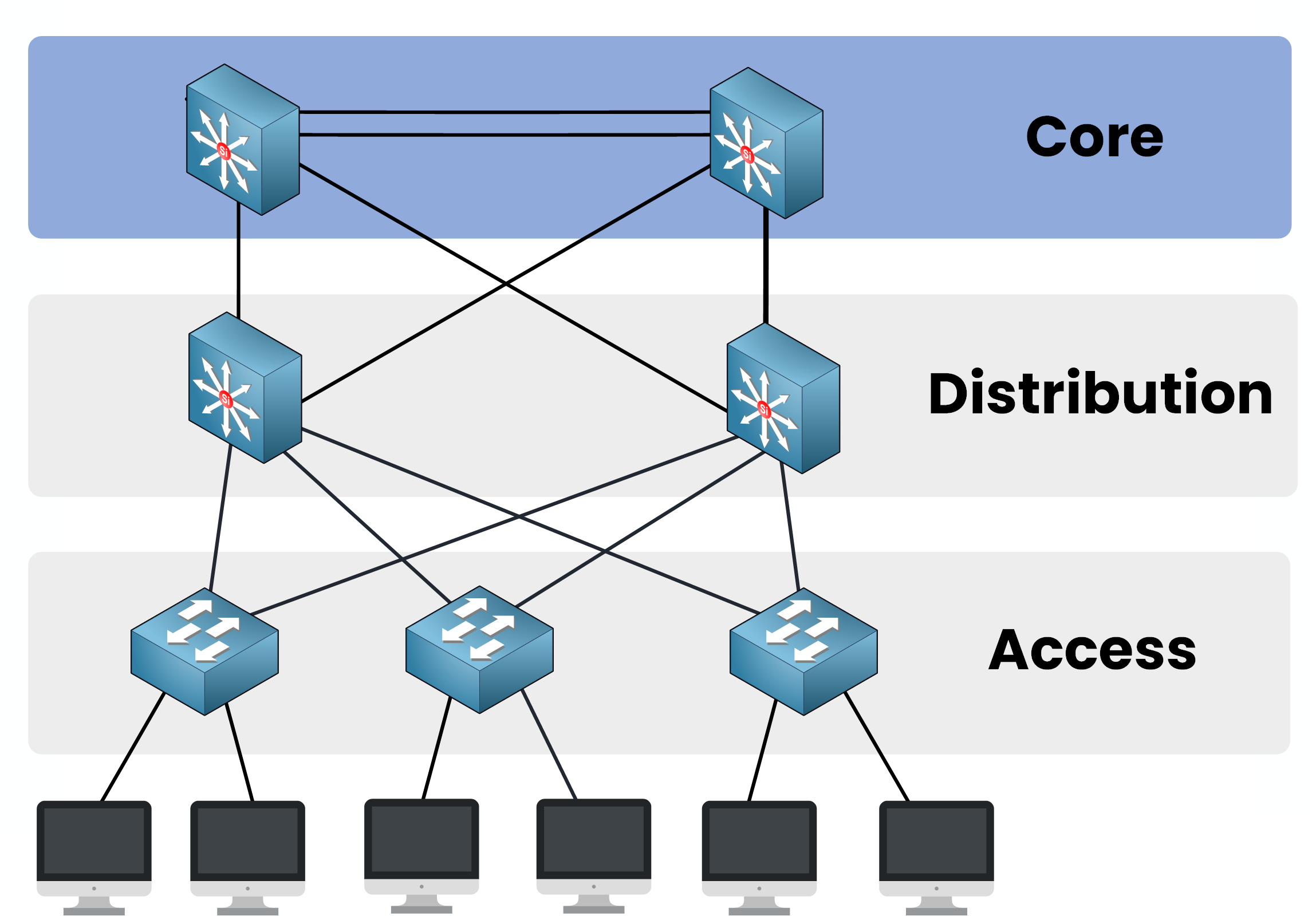

• Core Layer — the executive backbone. Where speed is everything.

Each layer has a specific role and you need to understand every one of them.

Let's start at the bottom, with the Access Layer.

The Access Layer is the layer closest to your users.
It's where every laptop, IP phone, and access point physically plugs into your network.

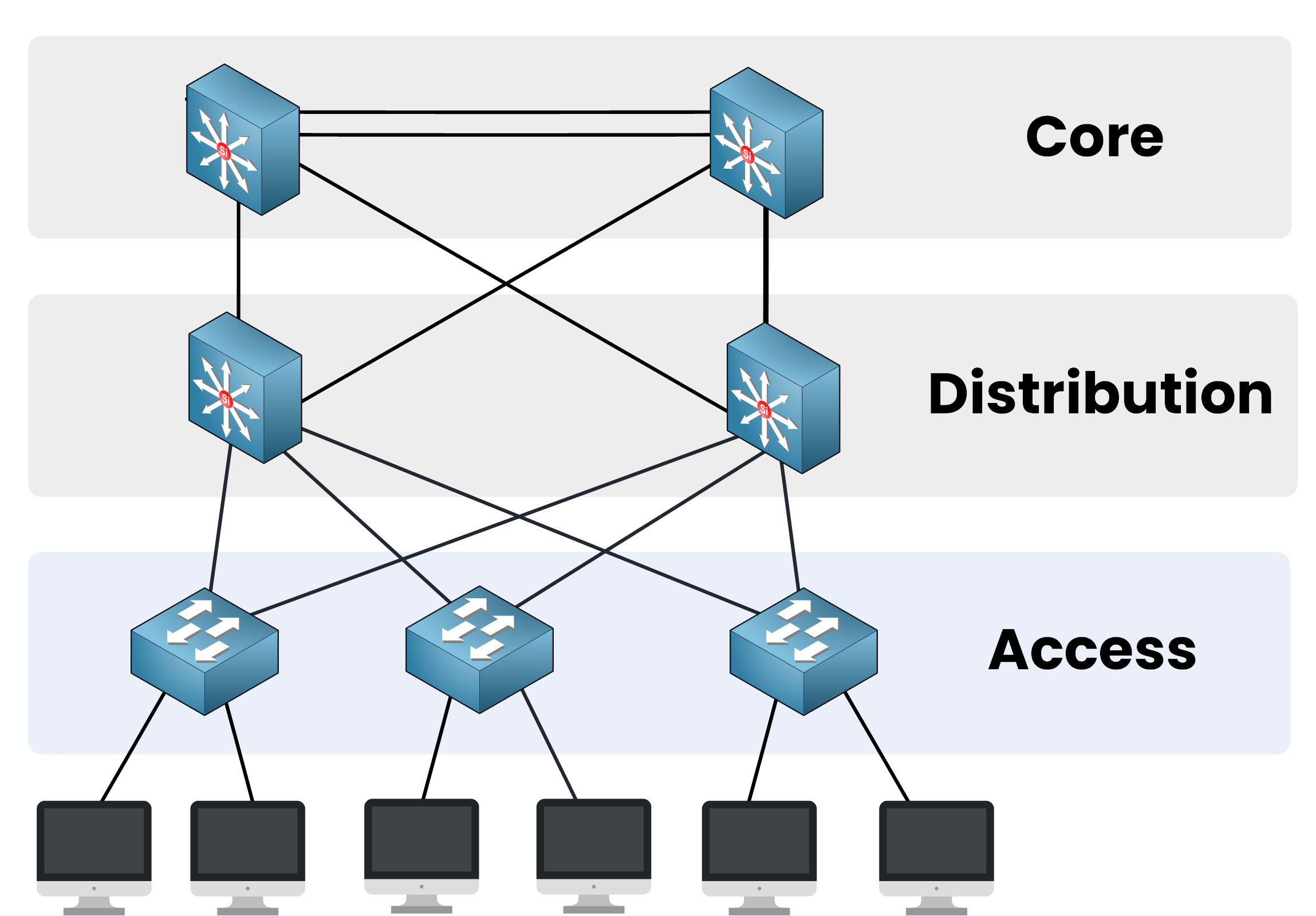

Figure 2 – The Access Layer connects end-user devices

Connecting End Devices

The Access Layer mainly operates at Layer 2 of the OSI model.
At this level, switches forward frames based on MAC addresses, not IP addresses.

It's the layer responsible for connecting end devices such as:

• PCs and laptops

• IP phones

• Printers

• Wi-Fi Access Points (APs)

This is the front door of your network.

Layer 2 Functions and Edge Services

Beyond simple physical connectivity, your Access Layer delivers a set of essential services:

• Physical network access for endpoints and wireless access points.

• Power over Ethernet (PoE) to power IP phones and access points directly through the network cable.

• VLANs to segment the network and create smaller broadcast domains.

• Spanning Tree Protocol (STP/RSTP) to prevent Layer 2 loops on redundant links.

• QoS trust boundary by classifying and marking traffic right at the edge.

Security at the Edge

Because the Access Layer is where untrusted devices physically connect, security is enforced here first.
