In the previous lesson, you followed a packet from PC1 to PC3 across the SD-Access fabric.
LISP registered the user, ISE assigned the SGT, VXLAN-GPO carried the traffic, the Border Node bridged to the outside.

But one question stayed open.

Who Configured the Fabric?

You never opened a CLI session.
You never typed a single command on a Fabric Edge.

So who configured all of this?

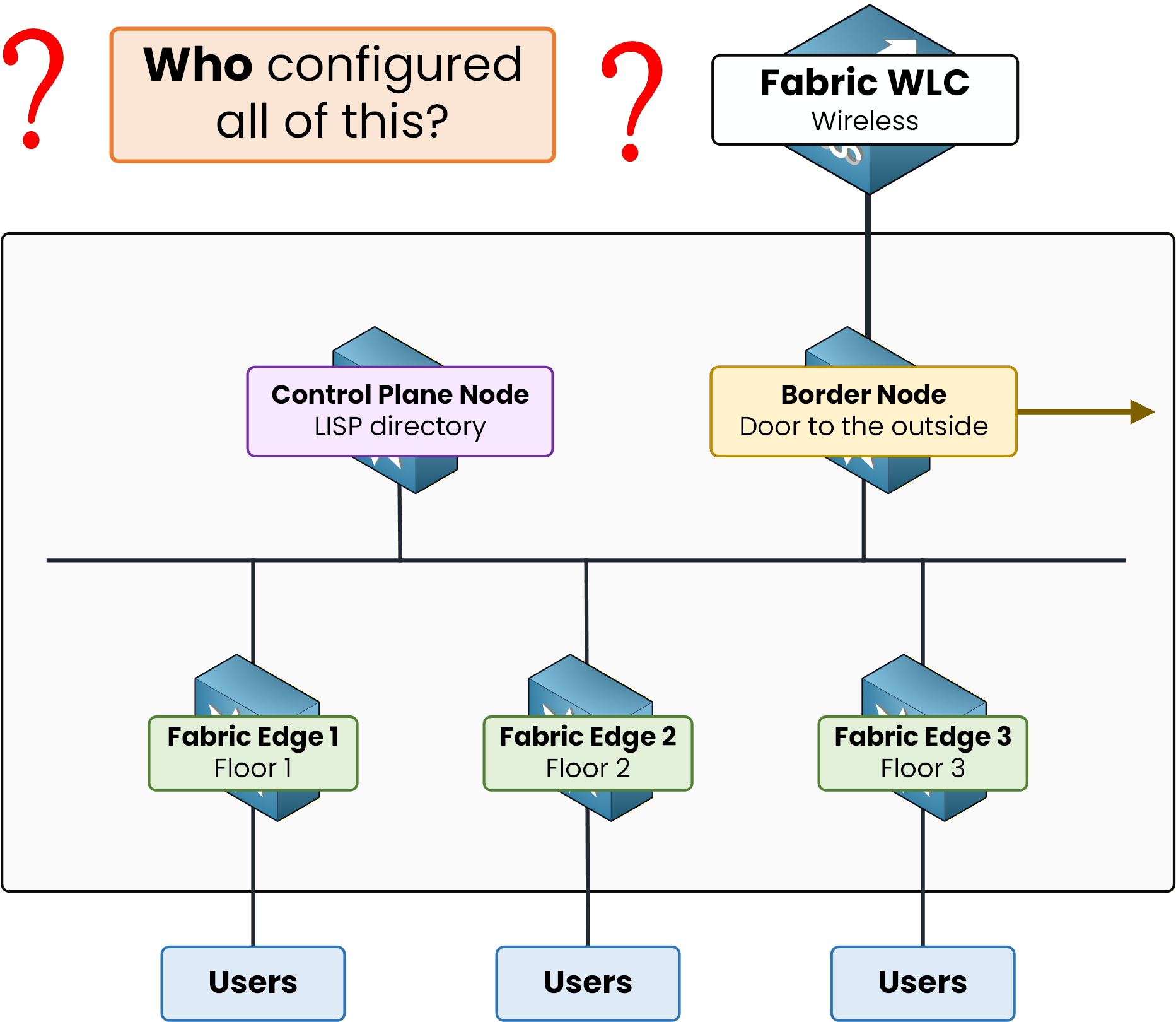

Figure 1 – The fabric works, but nobody typed a command

The Orchestrator

It is Cisco Catalyst Center.
You met it briefly in the SD-Access Architecture lesson as the fabric orchestrator.

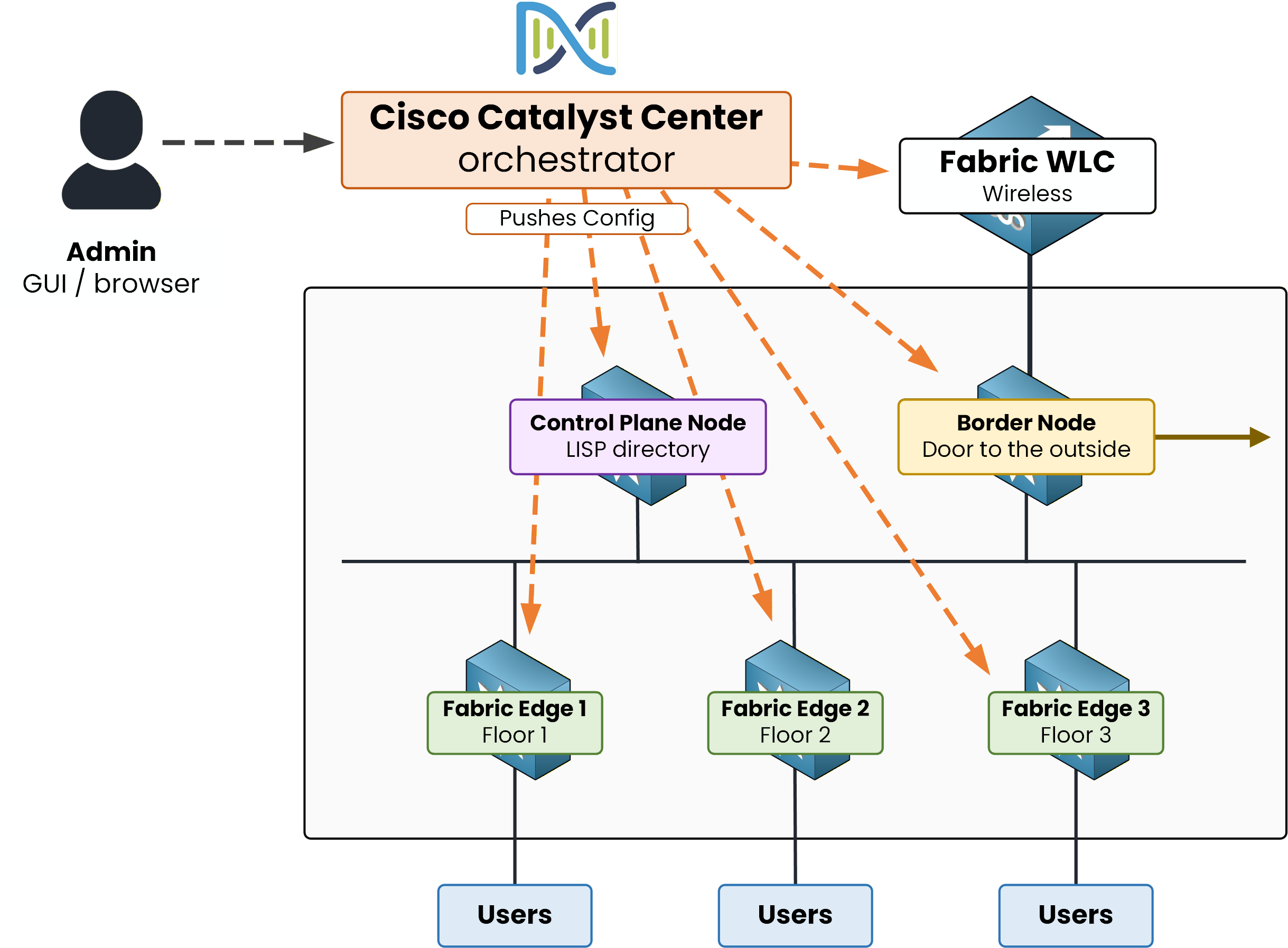

Figure 2 – Catalyst Center orchestrates every fabric device

One admin, one dashboard, pushing config down to every device.
No SSH session opened by hand.

Catalyst Center also manages traditional non-fabric campuses even without SD-Access.

Note: Cisco DNA Center was renamed Cisco Catalyst Center in 2023.
The exam still uses both interchangeably.

Every action you take in Catalyst Center falls into one of four workflows.

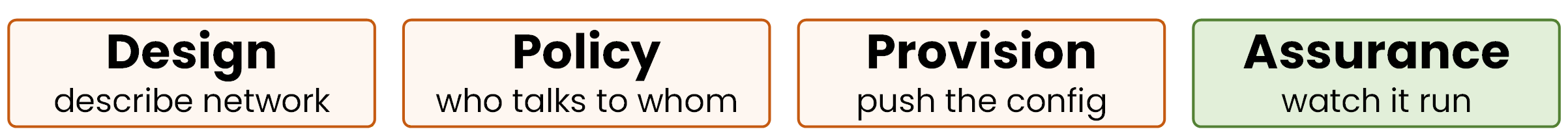

Figure 3 – The four workflows

• Design — describe the network on paper

• Policy — decide who talks to whom

• Provision — push the config to the devices

• Assurance — watch how it behaves

Design — Describe the Network

Design is where you describe your network before touching any device.

You build a site hierarchy (Area > Building > Floor).

• You assign IP pools.

• You set AAA servers, NTP, DNS, and SNMP for each site.

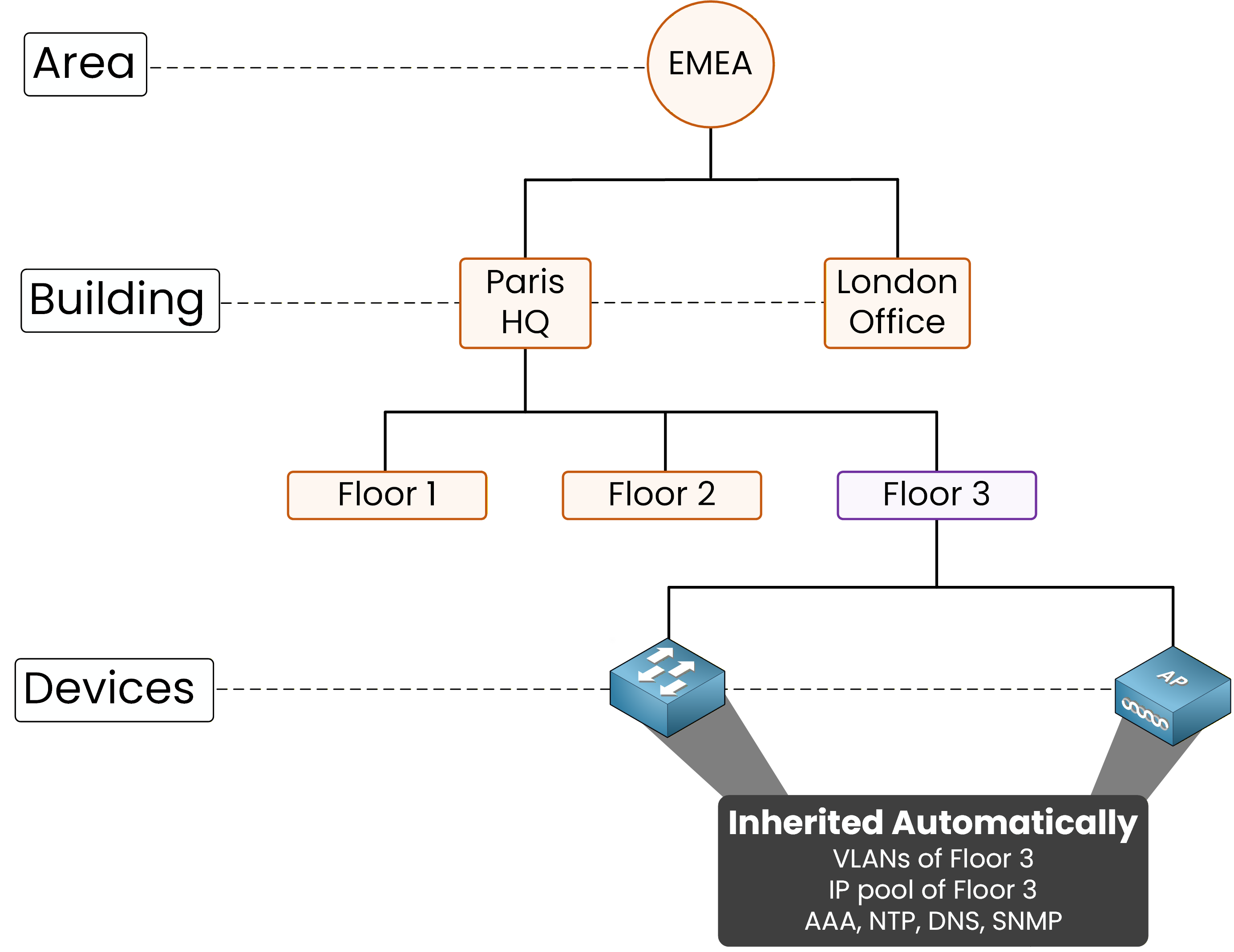

Figure 4 – A switch added to Floor 3 inherits its settings

The hierarchy is structured by location, not by role.
A device inherits the settings of the site it belongs to.

Beyond the hierarchy, Design ships with the Template Editor.
One template, many devices, different values per site.

Policy — Decide Who Talks to Whom

Policy is where you decide who can reach what.

You define group-based rules:

• Employees → data center

• Contractors → Internet only

• Guests → captive portal only

These groups are the same Scalable Group Tags you saw inside VXLAN-GPO.

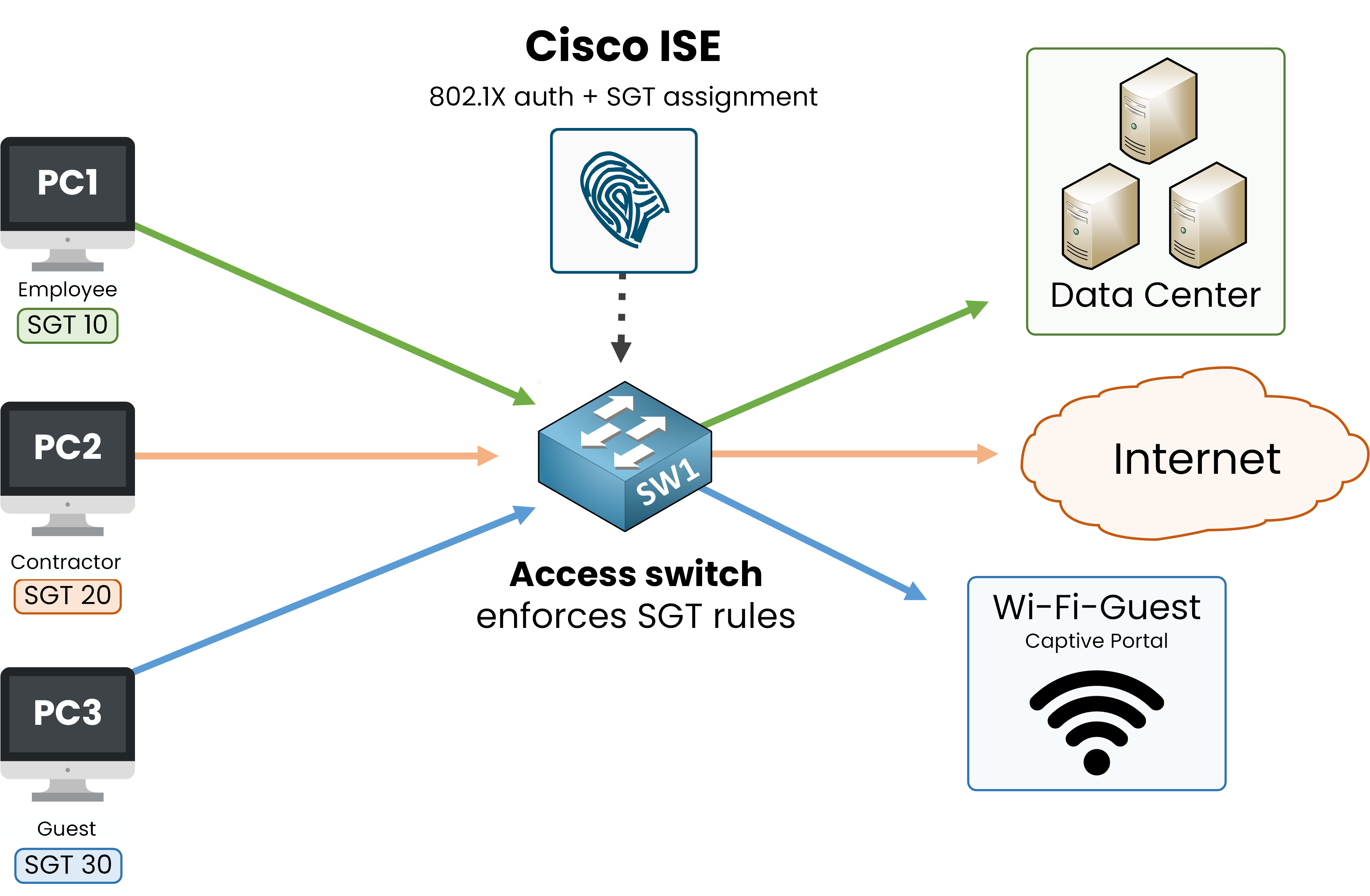

Figure 5 – Each group gets its own SGT and destinations

Catalyst Center integrates with Cisco ISE to assign users to groups dynamically.
802.1X authenticates, ISE returns the SGT, the Edge applies it.

Provision — Push the Config

Provision is where the configuration actually reaches the device.
Before that can happen, three things must be in place:

• IP connectivity between Catalyst Center and the device

• Valid credentials (SSH or Telnet, plus SNMP) so Catalyst Center can log in and read the device

• The device added to the inventory through Discovery

Catalyst Center also gives you the SWIM service (Software Image Management) to store device images and define a golden image per device family. SWIM is not a prerequisite, but you'll use it often to keep your fleet on the same version.

Even with everything in place, the device goes through four stages: three to prepare, one to push.

Stage 1 — Discovery

You give Catalyst Center an IP range to scan.
It uses CDP and LLDP to find the devices, then reads their inventory with SNMP. The credentials you provided (SSH or Telnet) let it log in if needed.
