Port Security Violation Mode

Port security violation mode defines how a Cisco switch reacts when an unauthorized device sends traffic through a secured port.

Cisco offers three Port Security violation modes to control this behavior:

• Shutdown (default)

• Restrict

• Protect

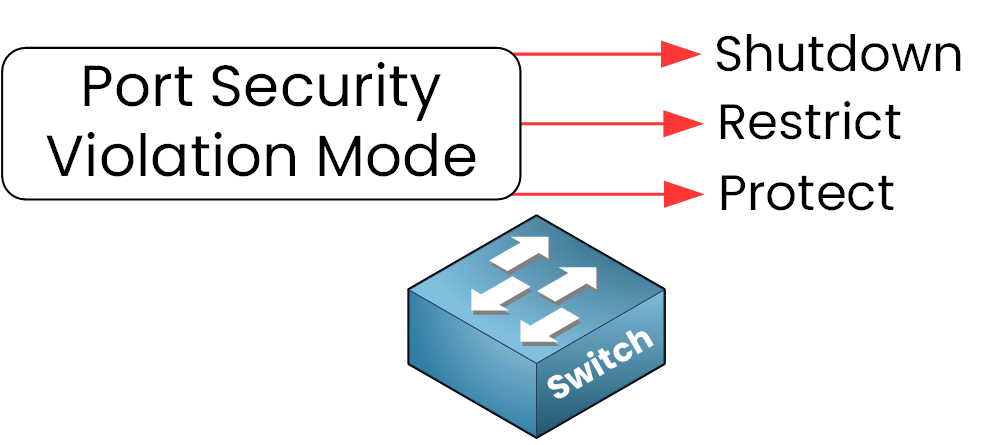

Figure 1 – Overview of Cisco Port Security violation modes

Each mode offers a different level of enforcement and logging. Let’s explore them one by one.

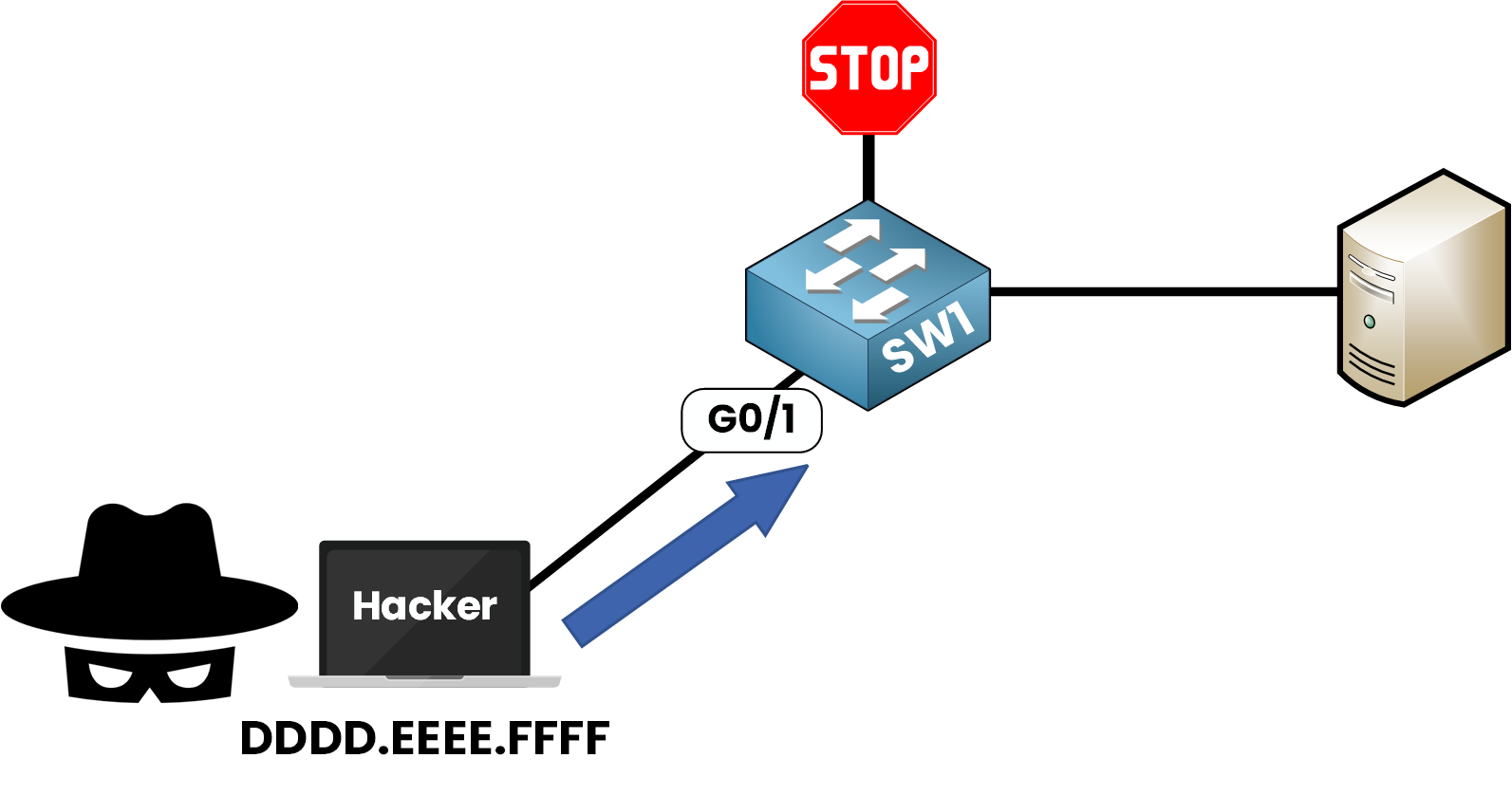

The Shutdown mode is the most aggressive and secure option.

Behavior

• The switch disables the port (err-disabled state).

• A syslog and/or SNMP alert is generated when the violation occurs.

• All traffic stops on the interface, including from authorized devices.

• The violation counter increases once (at the moment of shutdown).

Once the port is shut down, no additional logs are generated, even if the unauthorized device keeps sending traffic.

This mode ensures maximum security but requires manual intervention or automatic recovery to bring the port back up.

The Restrict mode is more flexible than Shutdown mode.

Behavior

• Unauthorized traffic is dropped.

• A syslog and/or SNMP message is generated every time a violation occurs.

• The port remains operational for authorized devices.

• The violation counter increases for each unauthorized frame.

This mode is useful in production environments where network availability is a priority but violation monitoring is still required.

Example Configuration for Restrict Mode

Let’s take a hands-on look at how Restrict Mode operates in practice!

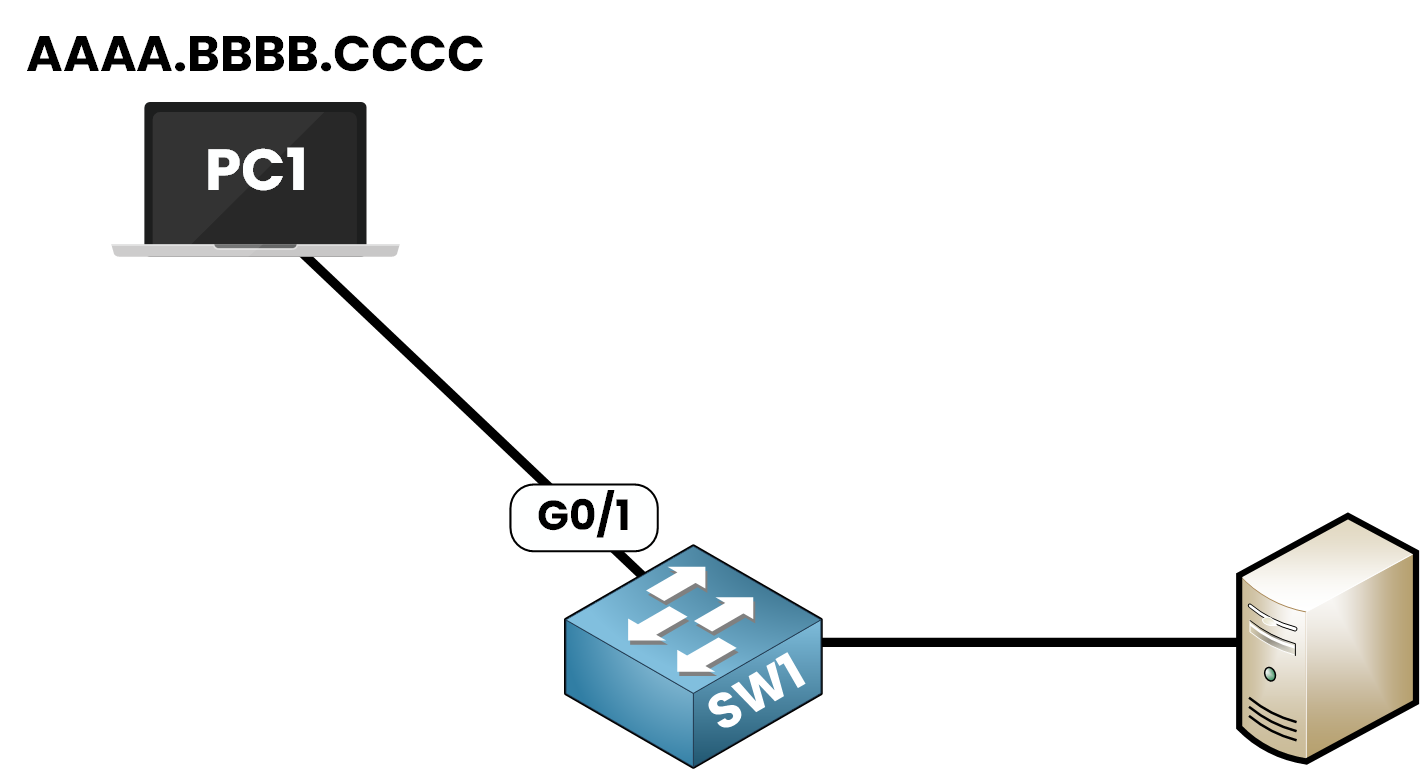

Figure 2 – Topology used to demonstrate Port Security Restrict mode in practice

Step 1 – Enable Port Security:

First, enable Port Security on interface G0/1:

SW1(config)# int g0/1
SW1(config-if)# switchport port-security

Step 2 – Configure a secure MAC address (PC1):

This time, I will statically authorize PC1’s MAC address. Let’s explore the available port security options:

SW1(config)# int g0/1
SW1(config-if)# switchport port-security ?
  aging        Port-security aging commands
  mac-address  Secure mac address
  maximum      Max secure addresses
  violation    Security violation mode

Now, we configure PC1’s MAC address (AAAA.BBBB.CCCC) as the secure MAC address:

SW1(config-if)# switchport port-security mac-address AAAA.BBBB.CCCC

Step 3 – Set violation mode to restrict:

Next, let’s configure the violation mode to Restrict:

SW1(config-if)# switchport port-security ?
  aging        Port-security aging commands
  mac-address  Secure mac address
  maximum      Max secure addresses
  violation    Security violation mode

The available violation modes are shown below:
