Broadcast Domain

In Ethernet networks, some messages are meant for every device on the local network.
These are called broadcast frames, messages that tell all nodes, “listen to me.”

But how far can such a broadcast actually travel?
That depends on the broadcast domain, the logical portion of the network where a broadcast frame can reach every other device.

Think of it as the “shouting range” of your network; everyone within that area hears the same message.

Let’s take a simple example to visualize it.

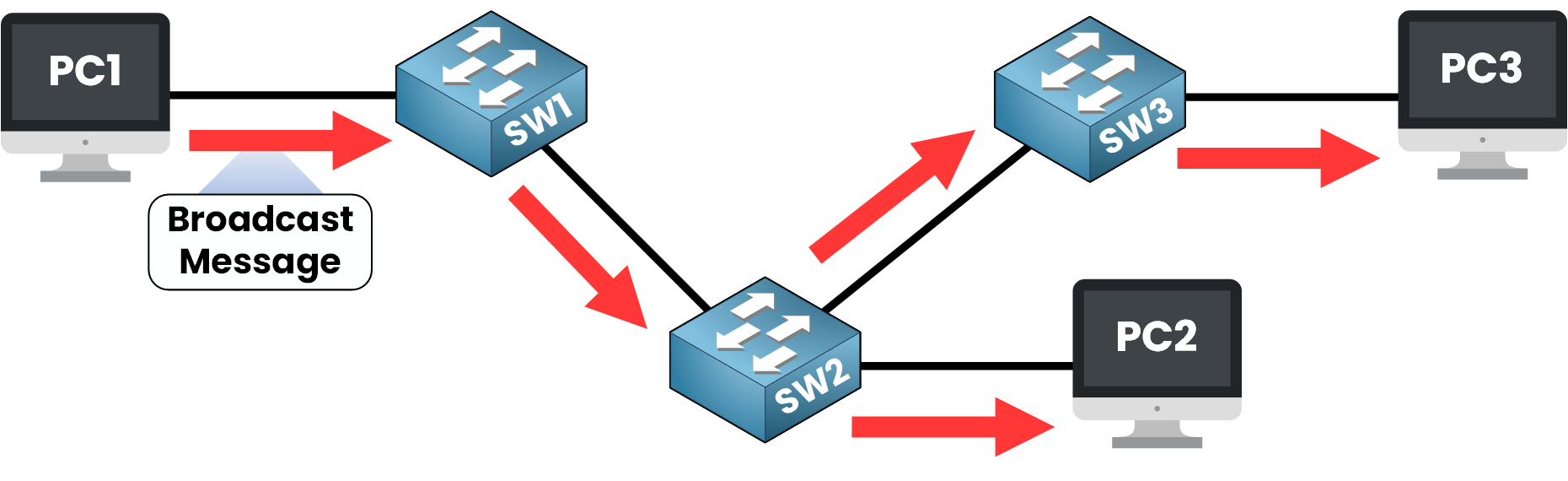

Figure 1 – PC1 broadcasts an ARP request to all devices

PC1 sends an ARP request, a broadcast message used to discover another host’s MAC address.
The frame is sent with the destination MAC address FF:FF:FF:FF:FF:FF, which literally means “to all devices on this LAN.”

• Since only switches are involved, each one forwards the frame out of all ports except the one it came from.
  This behavior is part of how Layer 2 devices handle broadcast traffic inside a network segment.

As a result, the message reaches every connected device, even those located behind other switches.
All these devices share the same broadcast domain, a single Layer 2 boundary where broadcast traffic can flow freely.

Switches operate at Layer 2 and do not create boundaries for broadcast traffic.
When a broadcast enters one port, the switch simply copies it to every other active port.

That’s how a single switch can reach every device within its network segment.
But what happens when you link multiple switches together?

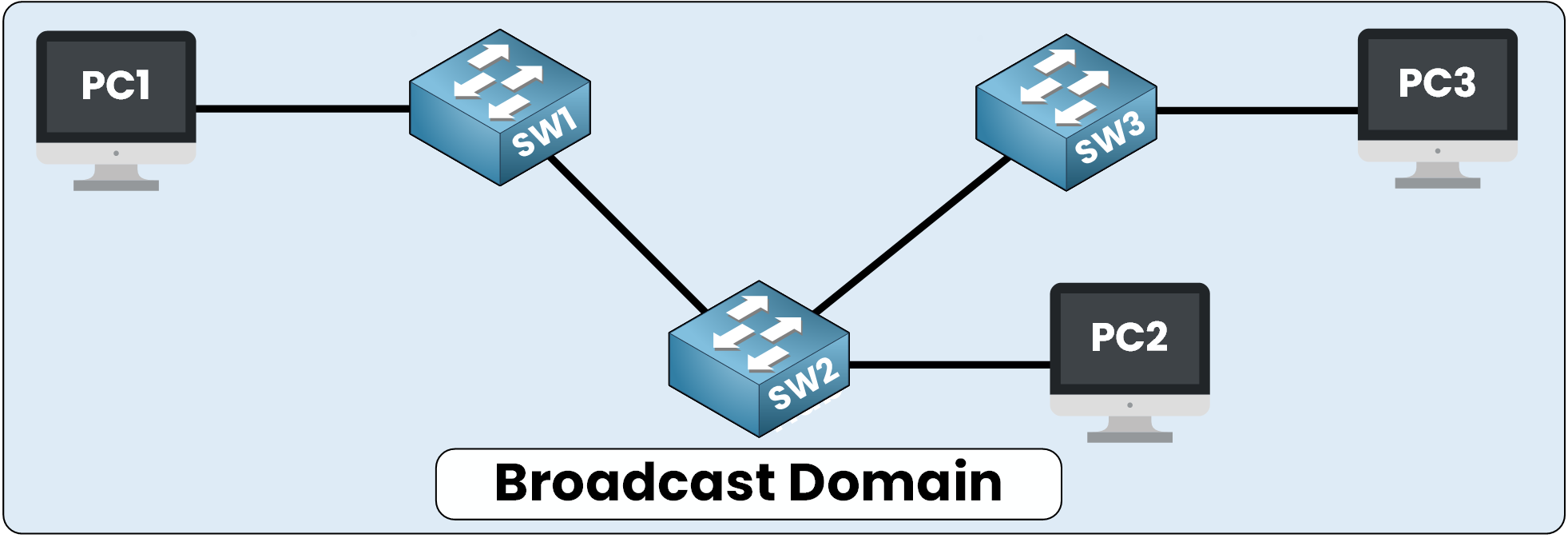

Figure 2 – Switches extend the broadcast domain across the entire network

Each switch repeats the same behavior, forwarding broadcast frames to all connected ports except the one they came from.
The result is that the broadcast keeps traveling, hop by hop, across the entire switch network.

It’s simple and efficient for small LANs.
But as networks grow, this behavior becomes a double-edged sword.

Every broadcast frame consumes bandwidth and processing power, even on devices that don’t need the message.
Over time, this flood of unnecessary traffic leads to broadcast overhead and reduced performance.

That’s why large networks must be segmented.
Without boundaries, one broadcast can reach hundreds of devices and slow all of them down.

Unlike switches, routers are designed to stop broadcast traffic.
They act as natural boundaries between networks, ensuring that broadcast frames never spread beyond their intended segment.

Routers operate at Layer 3 of the OSI model, where forwarding decisions are made using IP addresses rather than MAC addresses.
Whenever a broadcast frame reaches a router interface, the device processes it locally but never forwards it to another interface, since routers do not propagate Layer 2 broadcasts between subnets.

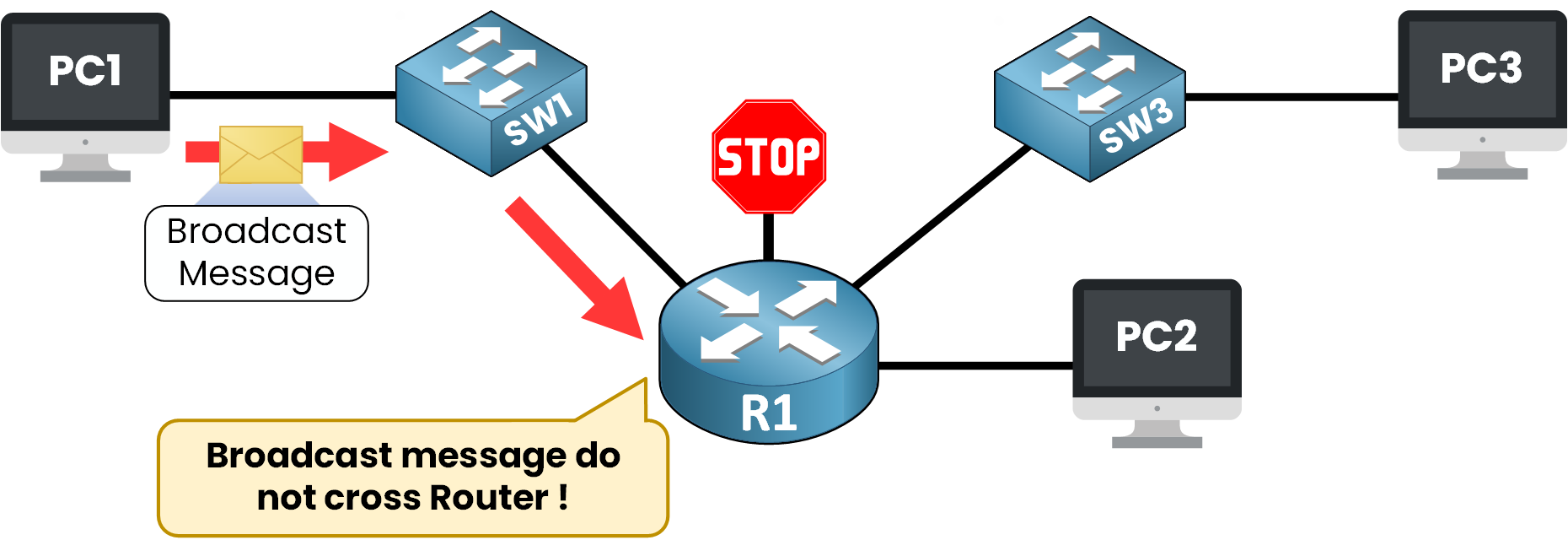

Figure 3 – Routers isolate broadcast domains by default

Imagine PC1 sending a broadcast frame within its local network.
Router R1 receives the frame, recognizes it as a broadcast, and drops it instead of forwarding it to other interfaces.
Devices such as PC2 or PC3, located on different networks, never see that message.

This behavior defines the router’s role as a broadcast boundary.
Every interface on a router marks the edge of a separate broadcast domain, ensuring that each subnet operates independently.

Now that you understand how routers block broadcast traffic, let’s look at the bigger picture.
In a network with multiple interfaces, each router interface automatically creates a distinct broadcast domain.

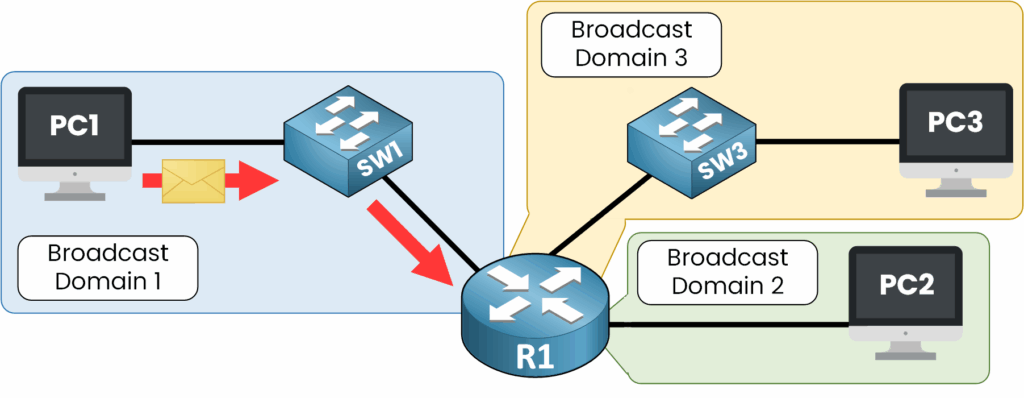

Figure 4 – Each router interface forms a separate broadcast domain

For example, if a router connects to three different LANs, each of those LANs becomes its own broadcast domain.
A broadcast sent on one network stays confined there; it never crosses over to another.

Even though all devices might be physically connected through switches, the router ensures logical isolation between networks.
This segmentation reduces unnecessary broadcast traffic, prevents congestion, and keeps communication efficient and predictable.

In short, routers don’t just route packets, they define boundaries that protect each network from the noise of its neighbors.
This concept forms the foundation of network segmentation and prepares you for understanding how VLANs achieve the same effect, but at the switch level.

So far, we’ve seen that routers naturally break broadcast domains by design.
But did you know that switches can do it too?

That’s where VLANs (Virtual LANs) come in.

A VLAN allows you to logically divide a single physical switch into multiple virtual broadcast domains.
Each VLAN acts as its own independent network, even though all devices are physically connected to the same switch.

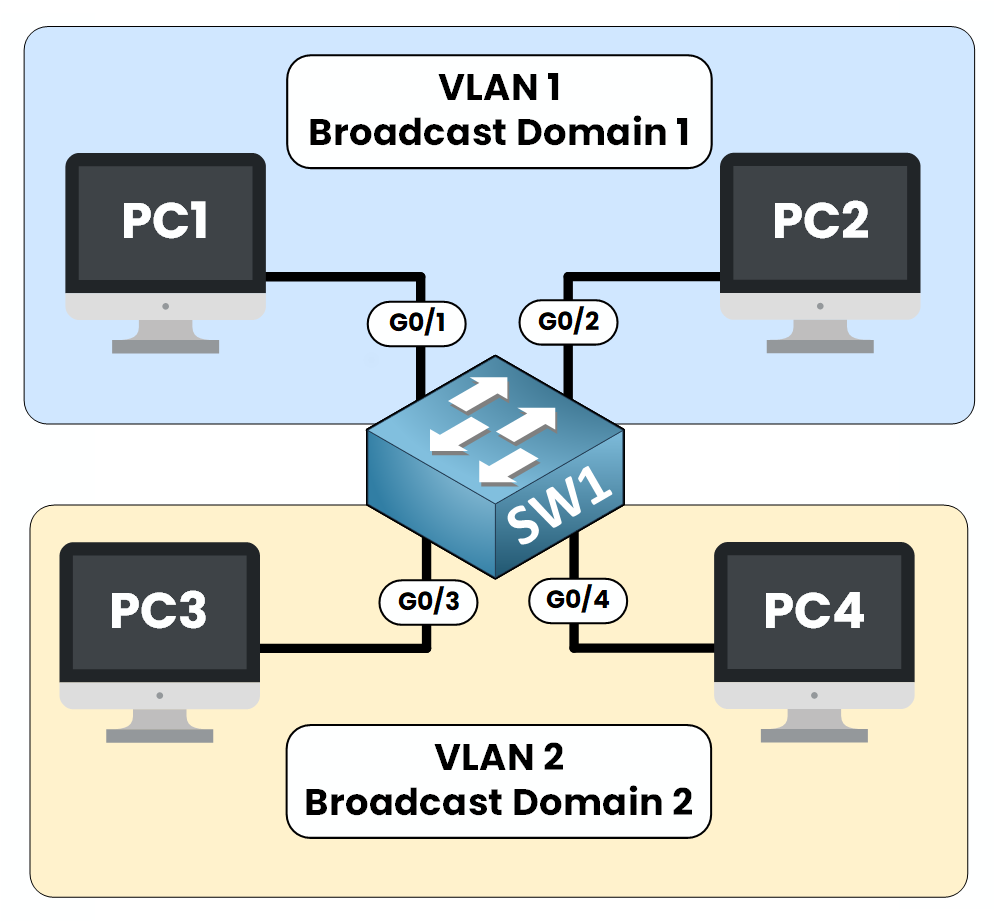

Figure 5 – VLANs separate broadcast domains on a single switch

In the example above, PC1 and PC2 belong to VLAN 1, forming Broadcast Domain 1.
Meanwhile, PC3 and PC4 belong to VLAN 2, forming Broadcast Domain 2.
Although they share the same switch (SW1), the broadcast traffic from VLAN 1 never reaches VLAN 2, and vice versa.

Now that you understand how VLANs divide a switch into multiple broadcast domains, you’re ready to explore the next topic: how VLANs work internally and why they are essential for efficient network segmentation.
