Day 5: The Quiet Floor

It is Monday morning, 8:40. The tickets keep arriving, and they all come from floor 3.

Nobody up there can open anything. The intranet, the mail and the CRM do not answer.

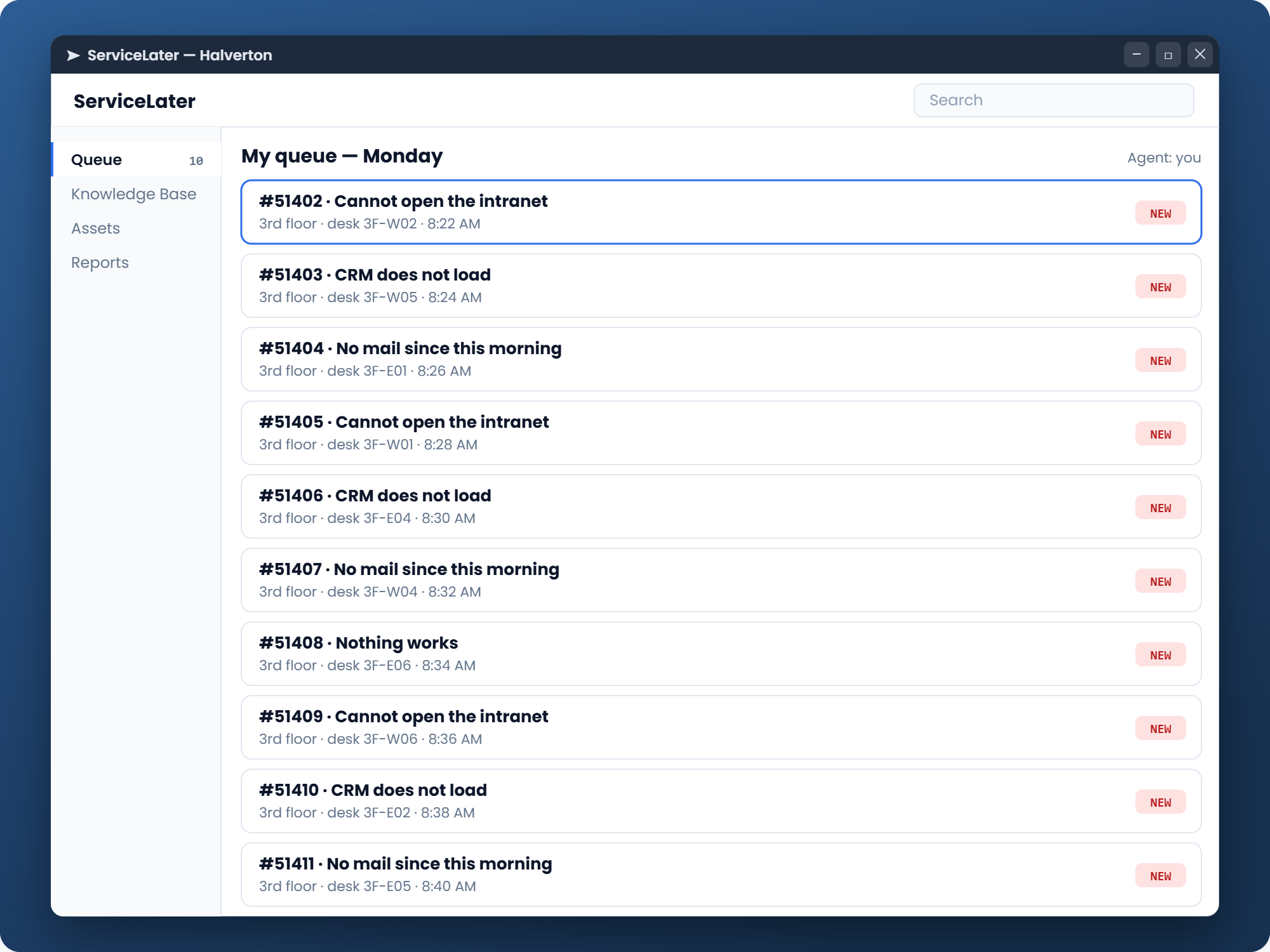

Figure 1 - Monday morning on floor 3

You call the first person who sent a ticket. She tells you that she can print, but that she cannot open anything else.

So the floor itself is working. The problem is that nothing can go from floor 3 to the rest of the building.

Sarah, from the network room: "Both switches are up and nobody touched them this morning. Take the console."

You have a console on the floor switch, SW-3F-ACC1, and another one on the core switch, SW-CORE1. A single cable connects the two.

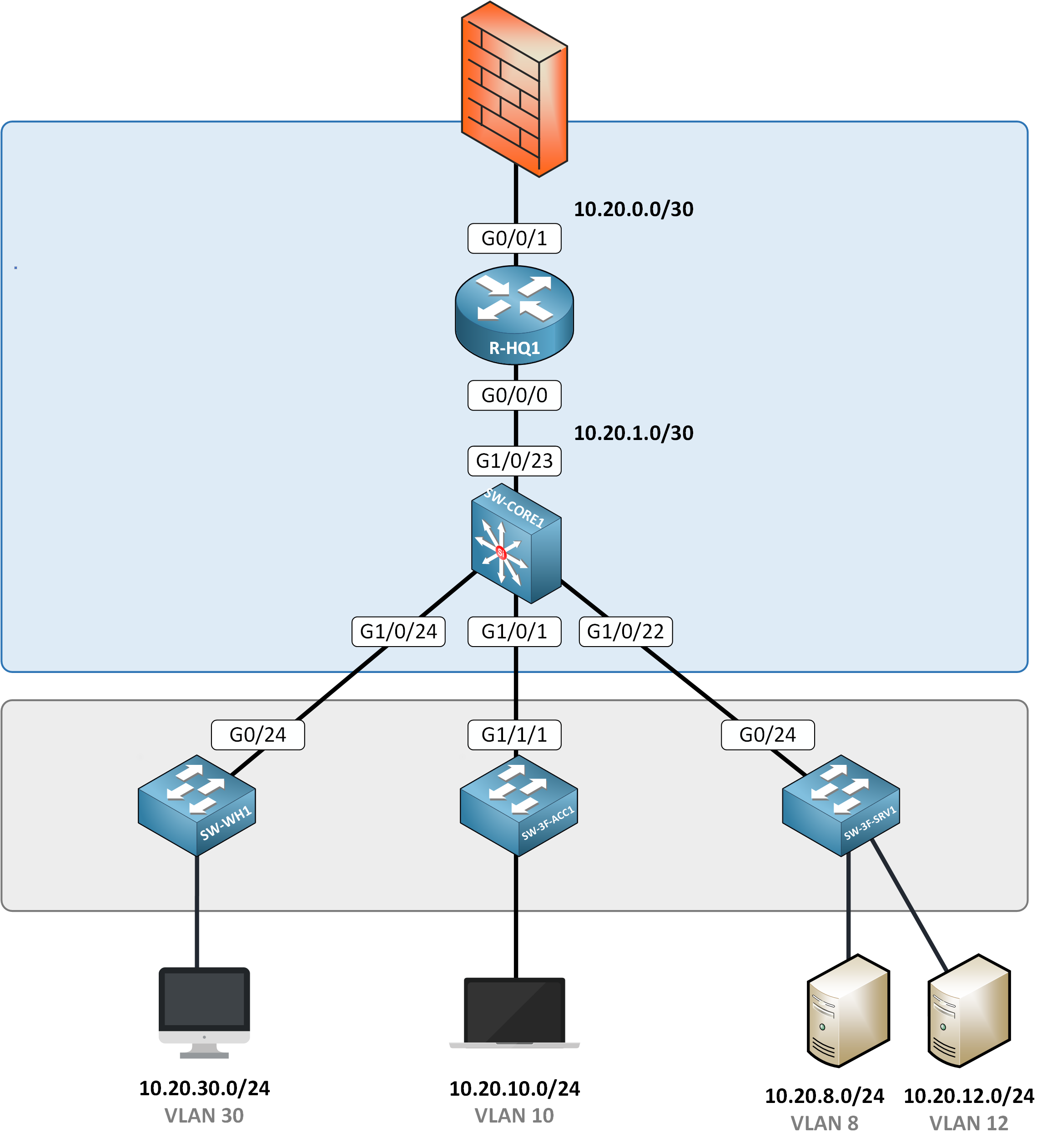

Figure 2 - HQ infrastructure

Two VLANs travel between these two switches:

Table 1 - The two VLANs between the floor and the core

Lab Instructions

• Find out why floor 3 cannot reach anything outside of the floor

• Repair it, without breaking anything else

• Check that it works from PC1

• Save the configuration

Finish the lab, then type the flag below.

You close the ticket at 9:15.

Sarah reads it before leaving and says to you:

"You should take the CCNA 200-301 exam."
