GRE over IPsec

In the previous lesson, you configured a site-to-site VPN using IPsec.
Traffic between the New York and San Francisco networks is now encrypted across the Internet.

Why GRE over IPsec?

However, a limitation remains.

IPsec alone cannot transport dynamic routing protocols. You cannot run OSPF or EIGRP directly over a standalone IPsec tunnel because IPsec only protects unicast IP traffic.

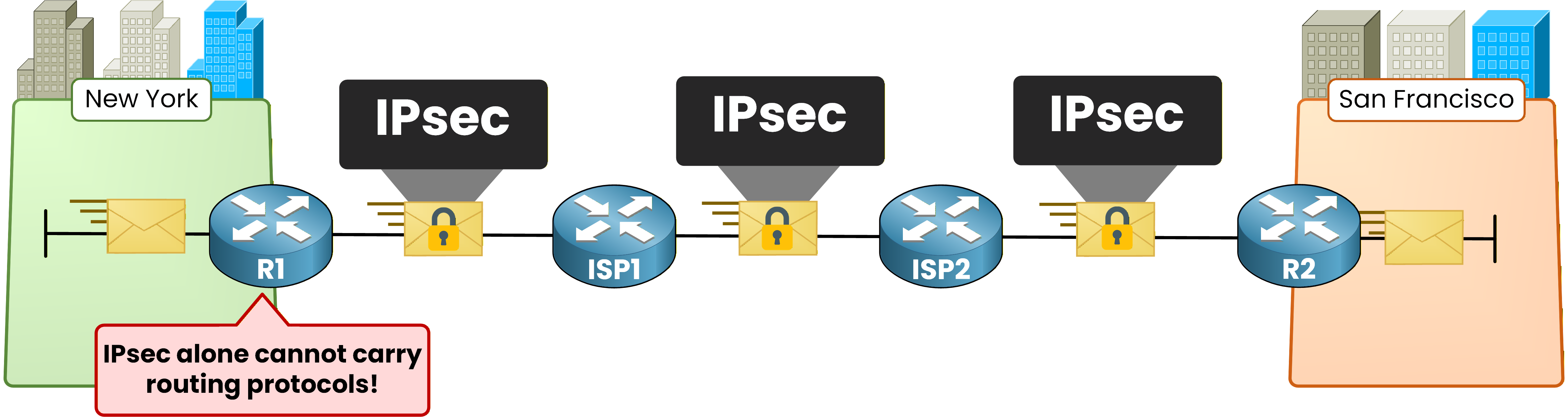

Figure 1 - IPsec cannot carry routing protocols

This limitation prevents routers from forming routing adjacencies directly through IPsec.

The answer is GRE over IPsec. You build a GRE tunnel first.
GRE can carry any traffic including multicast. Then you wrap that GRE tunnel inside IPsec to encrypt everything.

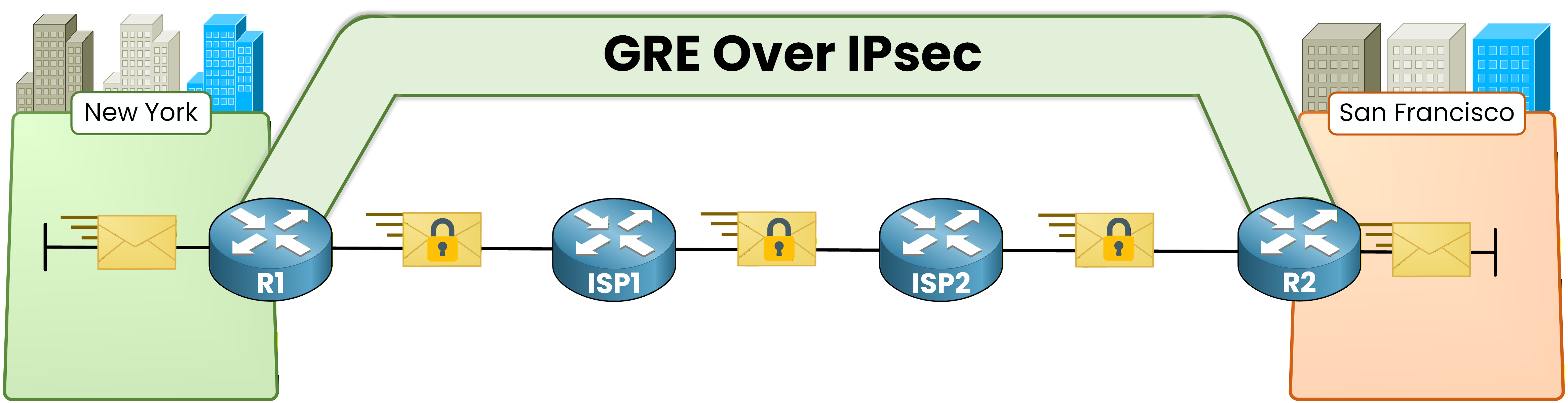

Figure 2 - GRE over IPsec topology

GRE provides the transport flexibility.
IPsec provides the encryption. Together they give you a secure overlay that supports dynamic routing.

Why Transport Mode?

There is also a critical design choice: which IPsec mode do you use?

In the IPsec Fundamentals lesson, you used tunnel mode. It adds a new outer IP header on top of the encrypted payload.
With GRE over IPsec, the GRE header already provides that outer IP header. Adding another one with IPsec tunnel mode would be redundant and waste 20 bytes per packet.

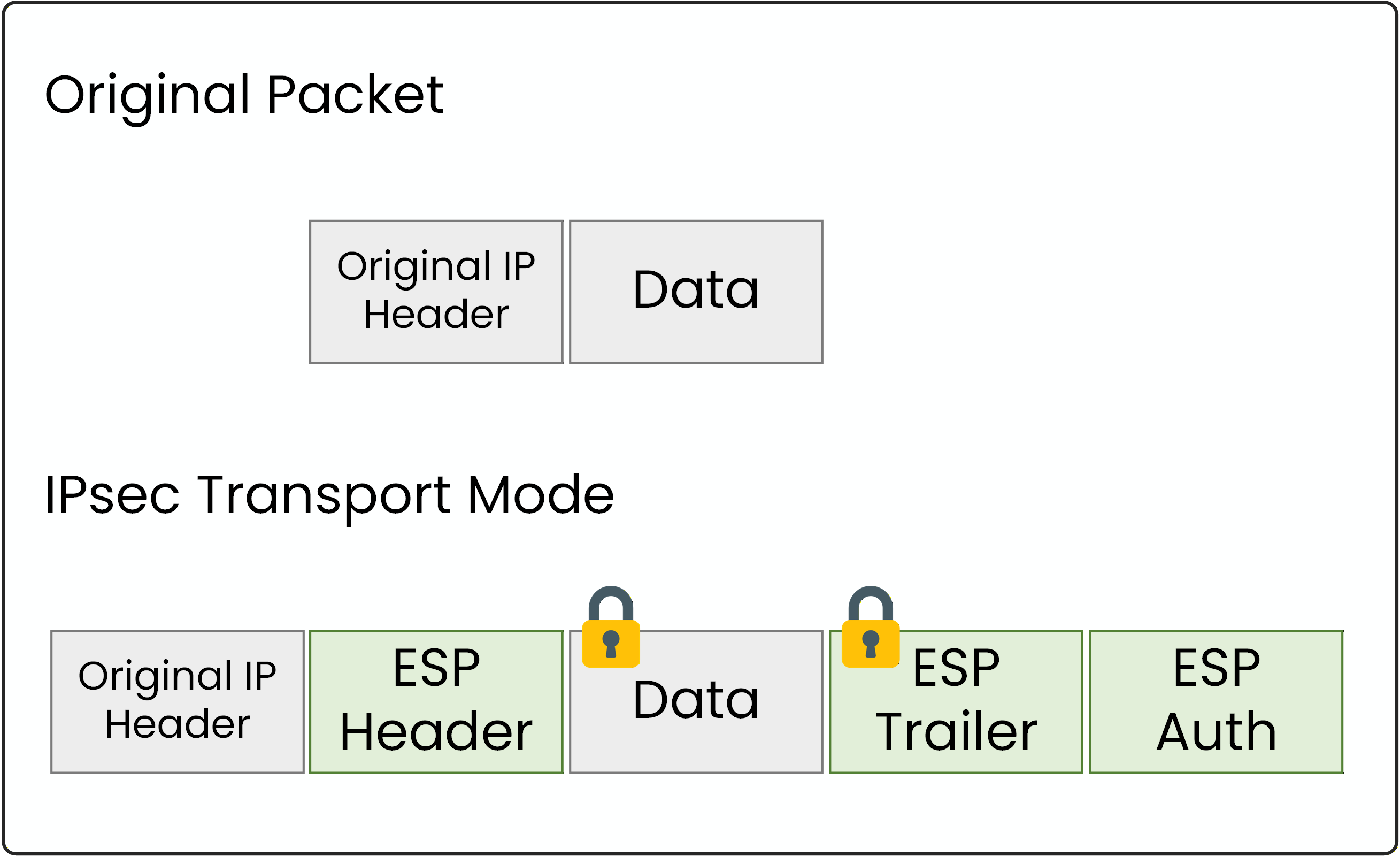

Figure 3 - IPsec transport mode

This is why you use IPsec transport mode instead.
IPsec encrypts only the payload. The GRE outer IP header handles routing across the Internet.

As the network engineer responsible for the New York (R1) and San Francisco (R2) sites, your task will be to configure the GRE over IPsec tunnel between them.

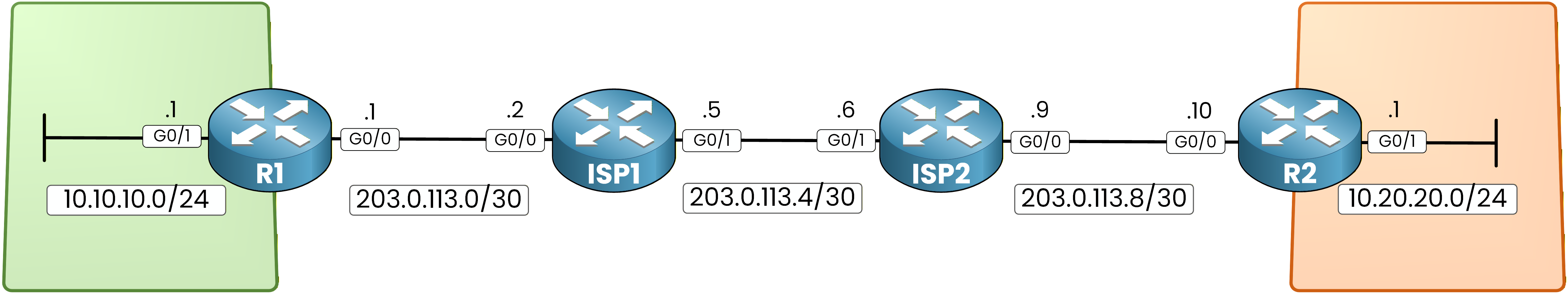

Figure 4 - GRE over IPsec lab topology

Underlay Routing

Before building the GRE tunnel, the underlay must be working.
Configure static routes on ISP1 and ISP2 so they can forward traffic between the two enterprise WAN interfaces.

ISP1# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
ISP1(config)# ip route 10.10.10.0 255.255.255.0 203.0.113.1
ISP1(config)# ip route 10.20.20.0 255.255.255.0 203.0.113.6
ISP1(config)# ip route 203.0.113.8 255.255.255.252 203.0.113.6

ISP2# conf t
Enter configuration commands, one per line.  End with CNTL/Z.
ISP2(config)# ip route 10.10.10.0 255.255.255.0 203.0.113.5
ISP2(config)# ip route 10.20.20.0 255.255.255.0 203.0.113.10
ISP2(config)# ip route 203.0.113.0 255.255.255.252 203.0.113.5

Each enterprise router also needs a default route toward its ISP.

R1(config)# ip route 0.0.0.0 0.0.0.0 203.0.113.2

R2(config)# ip route 0.0.0.0 0.0.0.0 203.0.113.9

GRE Tunnel

Your underlay is ready. Now build the GRE tunnel.
The tunnel endpoints are the WAN addresses and the tunnel uses the 192.168.100.0/30 subnet.

On R1:

R1(config)# int tunnel0
%LINEPROTO-5-UPDOWN: Line protocol on Interface Tunnel0, changed state to down
R1(config-if)# ip address 192.168.100.1 255.255.255.252
R1(config-if)# tunnel source 203.0.113.1
R1(config-if)# tunnel destination 203.0.113.10
%LINEPROTO-5-UPDOWN: Line protocol on Interface Tunnel0, changed state to up
R1(config-if)# end

On R2:

R2(config)# int tunnel0
%LINEPROTO-5-UPDOWN: Line protocol on Interface Tunnel0, changed state to down
R2(config-if)# ip address 192.168.100.2 255.255.255.252
R2(config-if)# tunnel source 203.0.113.10
R2(config-if)# tunnel destination 203.0.113.1
%LINEPROTO-5-UPDOWN: Line protocol on Interface Tunnel0, changed state to up
%OSPF-5-ADJCHG: Process 1, Nbr 1.1.1.1 on Tunnel0 from LOADING to FULL, Loading Done
R2(config-if)# end

OSPF over GRE

The tunnel is up on both routers. The OSPF adjacency message on R2 confirms Hello packets are already flowing through GRE.
Now configure OSPF across the tunnel.

R1(config)# router ospf 1
R1(config-router)# router-id 1.1.1.1
R1(config-router)# network 10.10.10.0 0.0.0.255 area 0
R1(config-router)# network 192.168.100.0 0.0.0.3 area 0
R1(config-router)# exit

R2(config)# router ospf 1
R2(config-router)# router-id 2.2.2.2
R2(config-router)# network 10.20.20.0 0.0.0.255 area 0
R2(config-router)# network 192.168.100.0 0.0.0.3 area 0
R2(config-router)# exit

Your GRE tunnel is up and OSPF is running through it.
But traffic is still in cleartext. Now add IPsec on top to encrypt it.
