Many threats do not arrive through your network perimeter at all.
They arrive through the endpoint itself.Firewalls and VPN gateways get most of the attention when you design security.
But a single infected laptop inside your office bypasses every perimeter control you built.A Vast and Diverse Attack Surface
An endpoint is any device that connects to your network.
Every one is a potential entry point for an attacker.

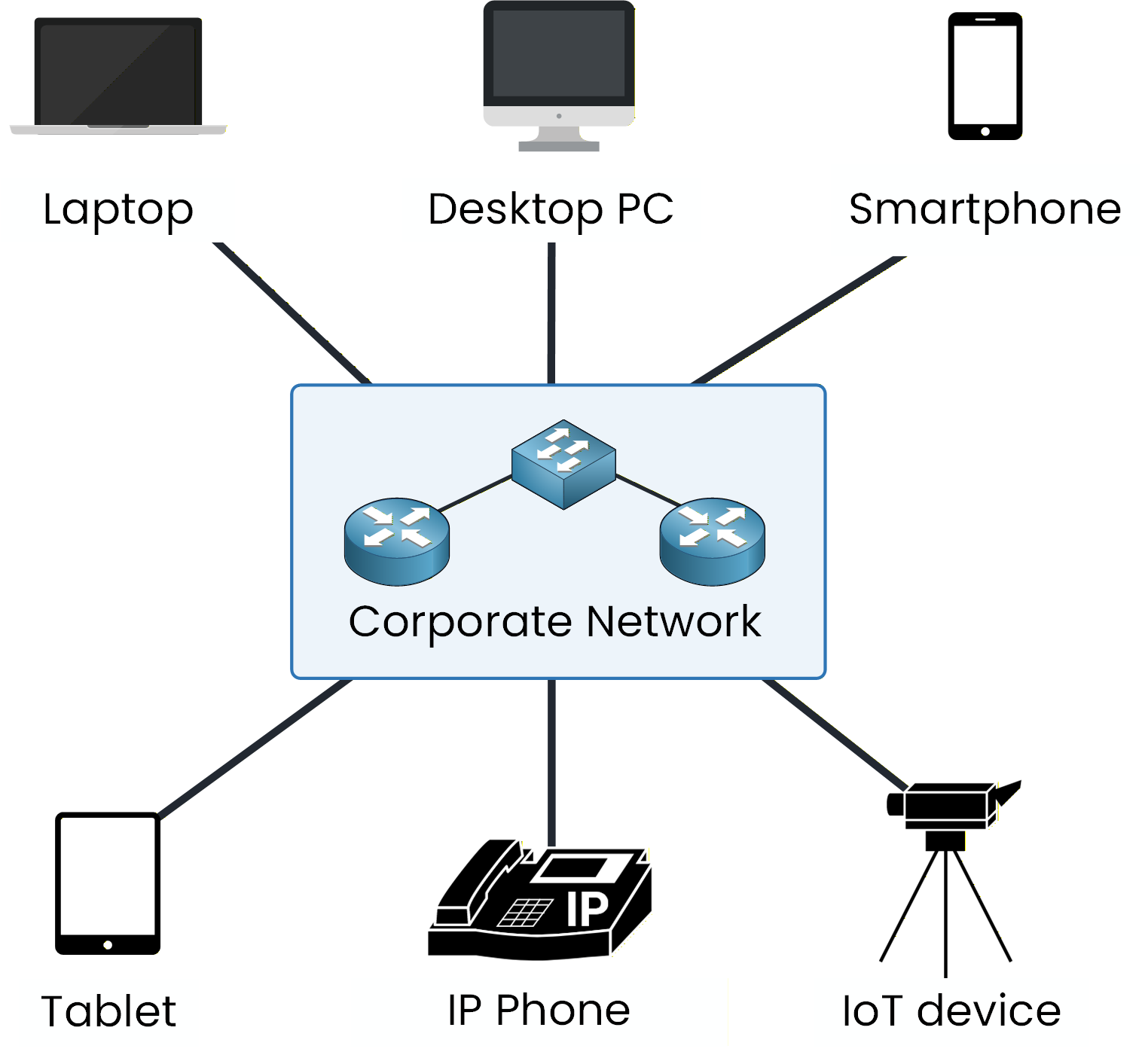

Figure 1 – Endpoints come in many forms and all connect to your network
A laptop, a PC, a tablet, a smartphone, an IP phone, an IoT device, all of them qualify.
Thanks to BYOD (Bring Your Own Device) policies, personal devices connect to your corporate network every day.These devices may carry vulnerabilities, outdated software, or already-installed malware.
They bypass your network security entirely because they sit inside the trust zone.Answer the question below
What acronym describes the policy of letting personal devices connect to the corporate network?
The Limits of Traditional Antivirus
For decades, antivirus software protected endpoints by maintaining a database of known malware signatures.
When a file matched a known signature, your antivirus blocked it before execution.

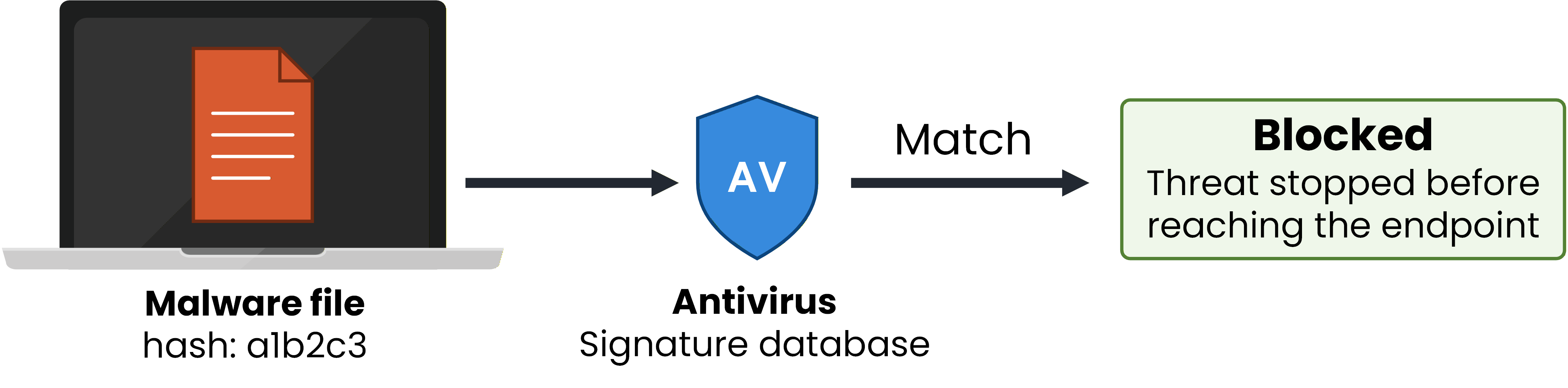

Figure 2 – Known malware is matched in the signature database and blocked
This model works well as long as the threat is already known.
But attackers adapt constantly.
When a variant gets detected, they modify its code and change its hash.
The new version is invisible to your antivirus.

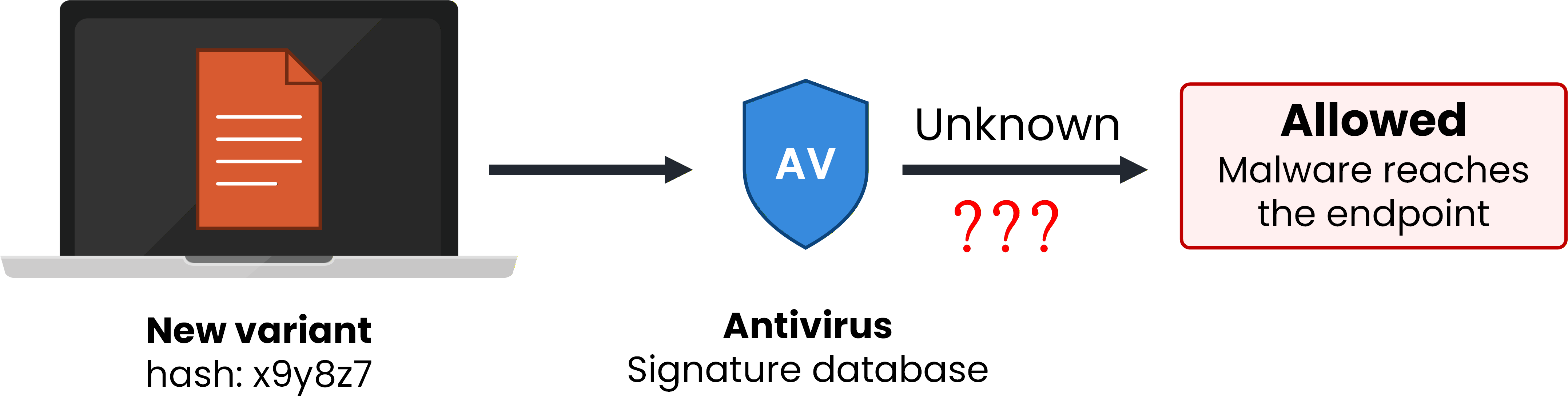

Figure 3 – A new variant has an unknown hash and reaches the endpoint
A static, point-in-time detection engine cannot keep pace with this dynamic threat landscape.
Your endpoints need continuous monitoring and cloud-backed intelligence.Answer the question below
What does traditional antivirus rely on to detect malware?
The ENCOR blueprint expects you to know the Cisco endpoint security product by name.
That product is Cisco Secure Endpoint, formerly known as AMP for Endpoints.
It follows the agent plus cloud model that now complements static antivirus across the industry.Note: AMP for Endpoints is the agent that runs on the device. It is different from Cisco AMP as a file inspection feature on the firewall, which you saw in the previous lesson.
The Agent on the Endpoint
Cisco Secure Endpoint deploys a lightweight agent on every protected device.
The agent sits on your laptop, your PC, or your server, ready to act on every file.

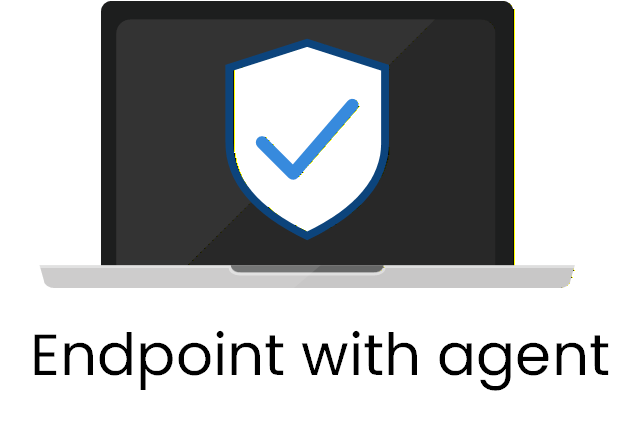

Figure 4 – A laptop with the Secure Endpoint agent installed
Sending the Hash to the Cloud
The agent watches file activity on your endpoint.
When a file is accessed, it computes the file hash and sends it to the Cisco Secure Endpoint cloud in real time.
Figure 5 – The agent sends the file hash to the cloud for lookup
The hash is a short fingerprint of the file content.
It lets the cloud recognize a known file without receiving the file itself.Answer the question below
What does the agent send to the cloud to identify a file?
Receiving the Verdict
The cloud looks up the hash in its reputation database and returns a verdict.
The verdict is Clean, Malicious, or Unknown.
Figure 6 – The cloud returns a verdict and the agent acts on it
Clean files run normally.
Malicious files are blocked on sight.
Unknown files are sent to sandboxing for deeper analysis.Answer the question below
What does the Secure Endpoint cloud return to the agent after a hash lookup?
The Role of Cisco Talos
The agent plus cloud architecture is common to many vendors today.
In the Cisco implementation, the cloud is fed by Cisco Talos.
Figure 7 – Cisco Talos feeds the Secure Endpoint cloud in real time
Cisco Talos is the threat research group that supplies verdicts to the Secure Endpoint cloud.
It ingests billions of events every day and pushes new verdicts to the cloud within minutes.Your verdicts therefore come from global threat intelligence rather than from a local signature file.
A file that was Clean yesterday can be flagged Malicious today and blocked automatically.Answer the question below
What threat intelligence source feeds the Secure Endpoint cloud?
Answer the question below
Talos flags payroll.exe: how many are blocked on sight among it, a renamed copy and a modified variant?
Protecting the endpoint itself is necessary, but not sufficient.
Attacks arrive through many channels: remote access, web browsing, and email.
Cisco groups its security products for these channels under the Cisco Secure portfolio.The ENCOR blueprint expects you to recognize each product and its role.
Products and Their Roles
Each product addresses a specific attack surface.
Together, they give you layered protection around every endpoint in your organization.
Figure 8 – The Cisco Secure portfolio surrounds every endpoint with layered protection
The table below maps each product to its current name, its former name, and its role.
Product
Former Name
Role
Cisco Secure Endpoint
AMP for Endpoints
Protects files and processes on the endpoint
Cisco Secure Client
AnyConnect
VPN and secure remote access to the network
Cisco Secure Firewall
Firepower / ASA
Filters traffic at the network perimeter
Cisco Secure Web Appliance
Web Security Appliance (WSA)
Web proxy that inspects browsing traffic
Cisco Secure Email
Email Security Appliance (ESA)
Scans inbound and outbound email
Table 1 – The five products of the Cisco Secure portfolio and their attack surface
Defense in Depth
The key idea is simple: no single product is enough.
An attacker who slips past your email gateway may still be caught by Cisco Secure Endpoint on the device.
A file missed by your firewall may be blocked later when the cloud verdict changes.This principle is called defense in depth.
Every layer adds one more chance to catch the threat that slipped past the previous one.Inside the Cisco Secure portfolio, the same Talos verdict reaches the endpoint agent, the firewall, the web proxy, and the email gateway.
That shared intelligence is what links the five products together inside the portfolio.Answer the question below
Which Cisco Secure product provides VPN and secure remote access?
Answer the question below
Firepower and ASA are the former names of which Cisco Secure product?
Answer the question below
WSA is the former name of which Cisco Secure product?
Answer the question below
ESA is the former name of which Cisco Secure product?
