Authentication and Authorization with AAA

You just secured a device with its own local accounts.
The username, the password, the privilege level: all of it lives on the network equipment.

Local accounts do not scale

That holds up for one router.

Figure 1 – The account lives on the device

Now imagine your network has dozens of devices.
Recreating every account on each one, and cleaning them up by hand when someone leaves, does not scale.

One central server

It would be much better to have one central server that holds every account and every permission.
Each device just refers to it.

That is exactly what AAA does.

Figure 2 – With AAA, the accounts move to one central server

With AAA, R1 and R2 both ask the same server: here, a TACACS+ server.
It holds the accounts and the credentials for the whole network.

How a login works

You log in to R1 with your own account.
Watch where your credentials go.

Figure 3 – Login forwarded to the server

R1 no longer checks locally.
It forwards your request to the TACACS+ server.

Figure 4 – Authentication vs authorization

The TACACS+ server then runs two checks:

• Authentication is who you are.

• Authorization is which commands you may run.

The TACACS+ server is now responsible for authentication and authorization.
That is two of the three A's. The third, accounting, just logs what a user did.

Before configuring AAA, you need to understand the two protocols your device can use to reach the server: TACACS+ and RADIUS.

Depending on what you protect, you will pick one over the other.

TACACS+

TACACS+ is Cisco's protocol, documented in RFC 8907.
You use it when admins manage your network devices: the server checks every command they send.

Figure 5 – TACACS+: the server checks every command

Three characteristics to remember:

• TCP port 49

• encrypts the entire payload

• keeps the three A's separate, so it authorizes each command

Do not confuse it with the legacy TACACS (RFC 1492): TACACS+ is a complete redesign, and the only one used today.

RADIUS

RADIUS is an IETF standard, documented in RFC 2865.
You use it when a user asks to join the network: here, an employee through 802.1X on the access switch.

Figure 6 – RADIUS: the user joins the network with 802.1X

Three characteristics to remember:

• UDP 1812 and 1813, for authentication and accounting

• encrypts the password only

• combines authn and authz, and carries EAP for 802.1X

Choosing between them

Compare them side by side and pick the right one:

Figure 7 – RADIUS vs TACACS+ side by side

There is no better protocol: each one matches a use case.
Admins managing devices, command by command? TACACS+.
Users joining the network? RADIUS.

In this lesson you manage devices, so you will configure TACACS+.
802.1X port authentication is out of scope for this lesson.

Enough theory, time to configure.

One warning before you type anything: enable AAA with no working local account while the server is down, and you lock yourself out.
That is why you always create a full-privilege local account first: you can still log in with it if anything goes wrong.

Step 1 - Create the fallback account

Create a full-privilege local user first, then enable AAA:

R1# configure terminal
R1(config)# username netadmin privilege 15 algorithm-type scrypt secret N3tAdm!n9
R1(config)# aaa new-model

The netadmin account is your local fallback.
It keeps you in control if the server ever goes down.

The scrypt secret stores the password as a hash, as you saw in Lines and Password Protection.
And aaa new-model switches the device into AAA mode.

Step 2 - Define the TACACS+ server

First, you define the TACACS+ server, with its IP address and its key.
Then you create a TACACS+ group and put your server inside:

R1(config)# tacacs server ISE-PRIMARY
R1(config-server-tacacs)# address ipv4 10.10.10.1
R1(config-server-tacacs)# key my.S3cR3t.k3y
R1(config-server-tacacs)# exit

R1(config)# aaa group server tacacs+ ISE-TACACS+
R1(config-sg-tacacs+)# server name ISE-PRIMARY
R1(config-sg-tacacs+)# exit

This is the modern syntax.
The older tacacs-server host form still works but is deprecated.

Two details matter here:

• The shared key must match the one configured on the server.

• The group can hold several servers. The device tries them in order, top to bottom: that is your failover.

Now that you enabled AAA and defined the server, one piece is missing:
telling the device where to check credentials.

That is the job of a method list: an ordered list of places to check.
For example: the TACACS+ server first, then the local database as a backup.

Step 3 - Authenticate logins

Start with authentication.
One line tells the device where to check every login:

R1(config)# aaa authentication login default group ISE-TACACS+ local

Read it left to right. The list is named default, and the device checks every login in this order:

1. group ISE-TACACS+ asks the TACACS+ server first.

2. local falls back to the accounts stored on the device itself.

The default keyword comes back at the end of the lesson.

The device tries the methods in order.
But when exactly does it fall back to local?

First case: the TACACS+ server is down and never answers.
The device gets no decision, so it moves to the next method and checks its own local accounts:

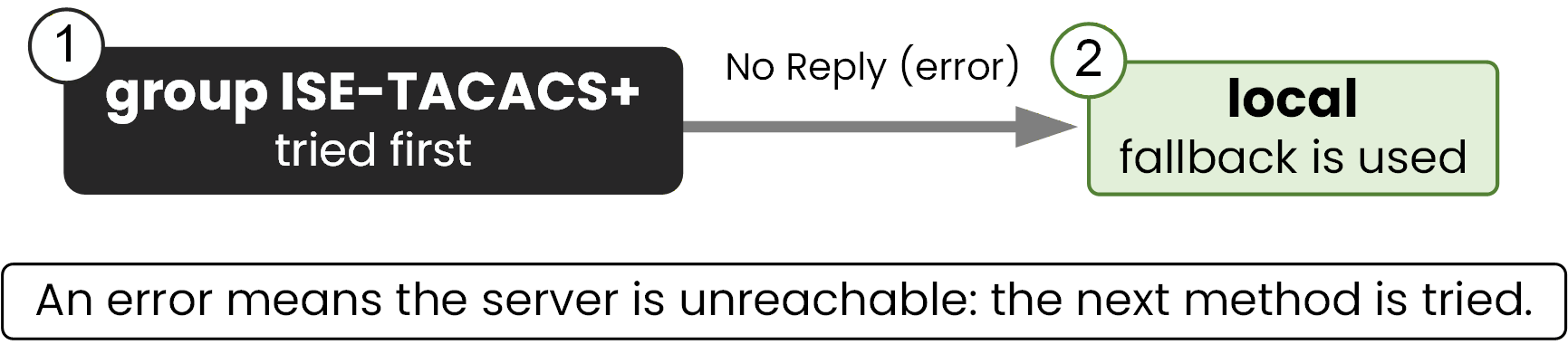

Figure 8 – On an error, the chain continues

That is an error: no answer at all.
The chain continues, local takes over, and you can still log in with netadmin.

Second case: the server answers, but the password is wrong.
This time the device received a decision: access denied.

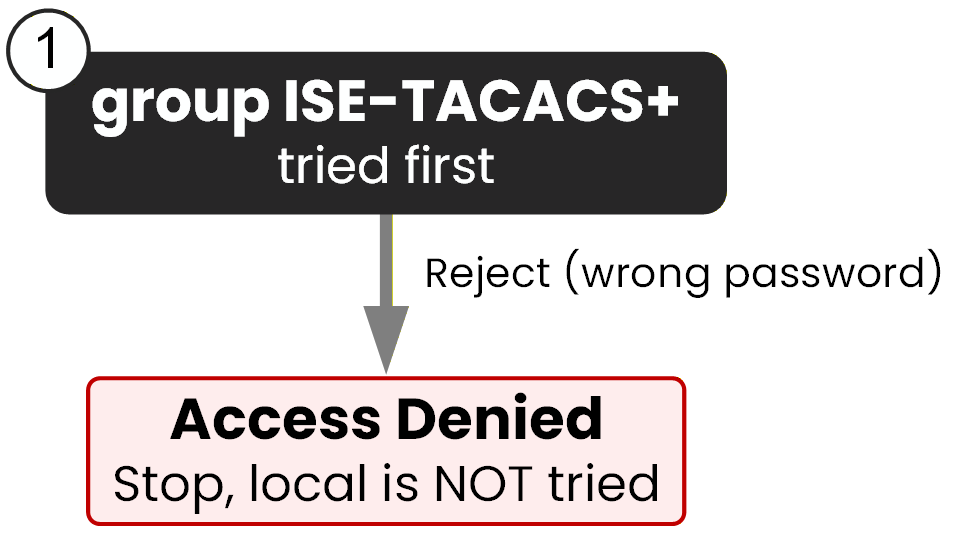

Figure 9 – On a reject, the chain stops

The chain stops: there is no fallback to local here.

Step 4 - Authorize the commands

Authentication is in place.
Now authorize what users can do, with two more lists:

R1(config)# aaa authorization exec default group ISE-TACACS+ if-authenticated
R1(config)# aaa authorization commands 15 default group ISE-TACACS+ if-authenticated
R1(config)# end

Each line has its own job:

• authorization exec sets the privilege level at login.

• authorization commands 15 checks each command. Set it per level, often 0, 1, and 15.

The if-authenticated keyword is what saves you during a server outage.
An already-logged-in user can still run commands.

Now test what you built.
On the server, admin is privilege 15 and netops is privilege 5.

Admin allowed, netops denied

Log in with each account and try a privilege-15 command.
The server decides what each may do.

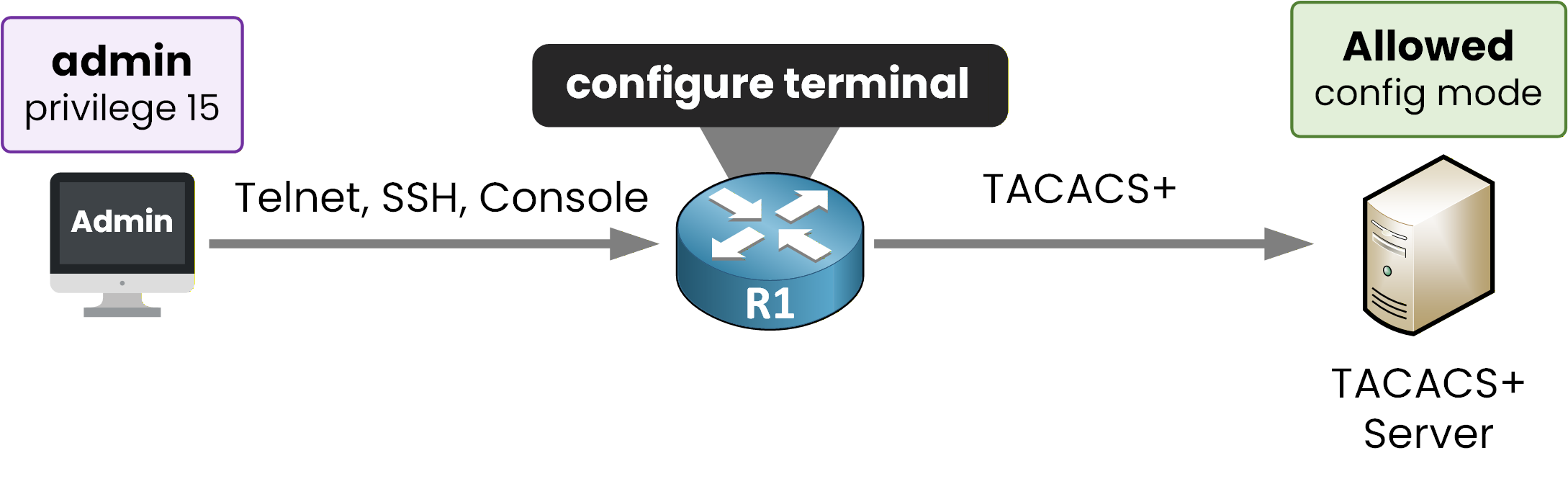

Figure 10 – Allowed at privilege 15

admin has privilege 15.
Log in, check the level, then open config mode:

R2# ssh -l admin 10.1.12.1
Password:
R1# show privilege
Current privilege level is 15
R1# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
R1(config)#

When the Password: prompt appears, type Adm!nScrypt9. Just like on a real device, nothing is displayed while you type it.

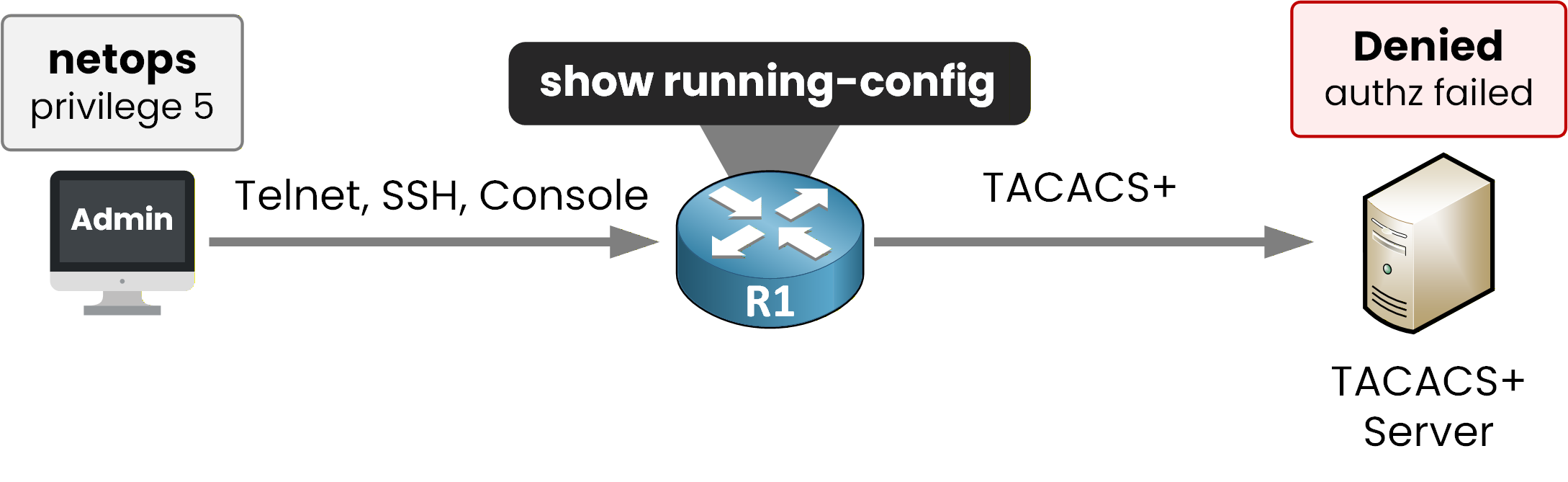

Figure 11 – Denied at privilege 5

netops has privilege 5.
Try a level-15 command and watch it get refused:

R2# ssh -l netops 10.1.12.1
Password:
R1# show privilege
Current privilege level is 5
R1# show running-config
Command authorization failed.

When the Password: prompt appears, type NetOps!Scrypt9.

The Command authorization failed message confirms per-command authorization is active.

Your AAA setup works.
Two traps can still catch you, at the exam and in production.

Named vs default lists

The lists you built used default: it applies to every line automatically, even the VTY lines.

A named list is different.
Build one, then bind it to the VTY lines yourself:

R1# configure terminal
R1(config)# aaa authentication login VTY-LOGIN group ISE-TACACS+ local

R1(config)# line vty 0 4
R1(config-line)# login authentication VTY-LOGIN
R1(config-line)# exit

On its own, the named list does nothing.
The login authentication line is what activates it on the VTY.

Local, never none

Every list you built ends with the same fallback keyword: local.
Look at your login list again:

R1(config)# aaa authentication login default group ISE-TACACS+ local

local means: if the server gives no answer, the device checks its own local accounts.
It is exactly what saved you in the error case.

The second possible keyword is none: no check at all.
Type it to see what it looks like:

R1(config)# aaa authentication login default group ISE-TACACS+ none

Right now, a dead server lets anyone in with no credentials.
In production, always end with local: re-enter the list with it, and the none line is overwritten.
