• Launch the lab below to jump into hands-on practice!
    Read the lab objective, configure until everything works as expected, and you'll get your validation flag.

    You run the ISP router, shared by two customers:

    • CLIENT1: HQ1 and BR1, left side of the network (orange)

    • CLIENT2: HQ2 and BR2, right side of the network (green)

    Right now every site can reach every other site, including the other customer's. Isolate the two customers with VRF-Lite on every router, without changing any IP address. Each customer must still reach its own sites, and nothing else.

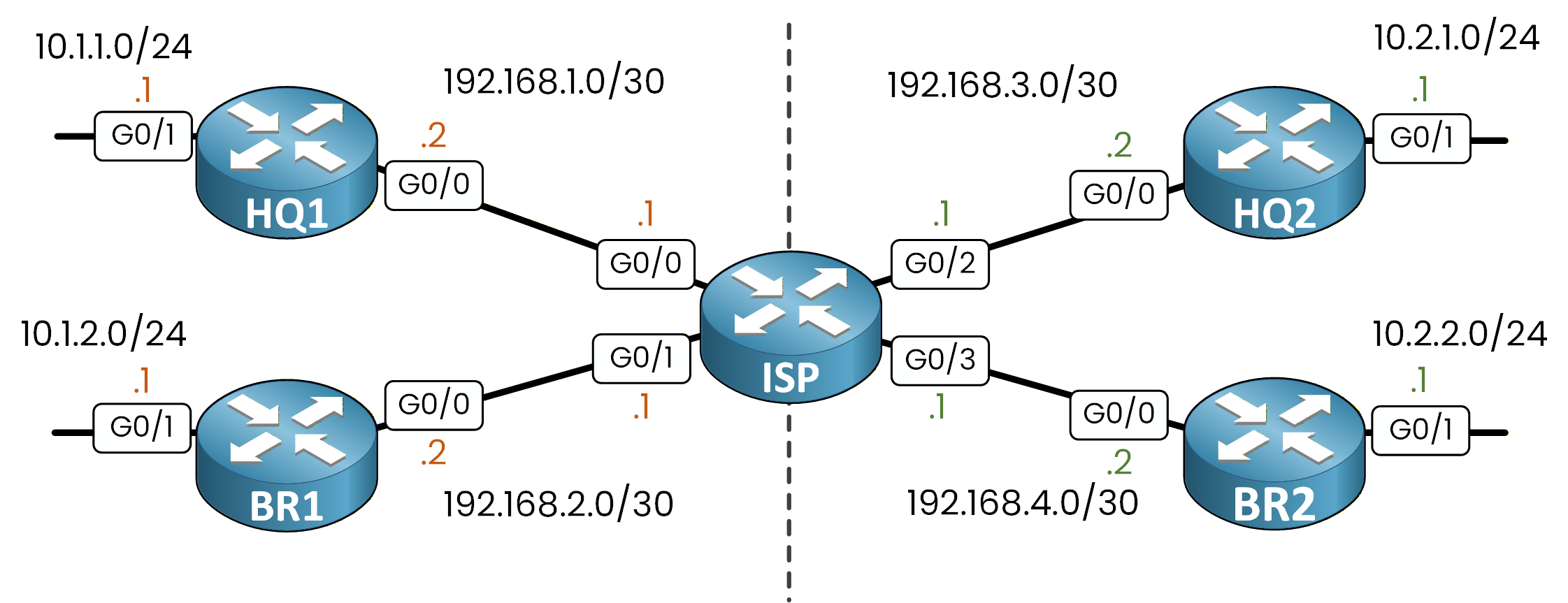

    VRF Lite lab topology with the ISP router, HQ1 and BR1 in CLIENT1, HQ2 and BR2 in CLIENT2, and every IP address

    Figure 1 - VRF Lite Topology

    Answer the question below

    Enter the flag you obtained.
