Static EtherChannel

1. Introduction to Static EtherChannel

In this course, we will go step by step through the configuration of Static EtherChannel. Unlike PAgP or LACP, Static EtherChannel does not require any negotiation between switches.

Interfaces are statically grouped using the on mode at both ends. This configuration will also include setting up interfaces as trunks and allowing VLAN 50 on the trunk.

Prerequisites for Configuration

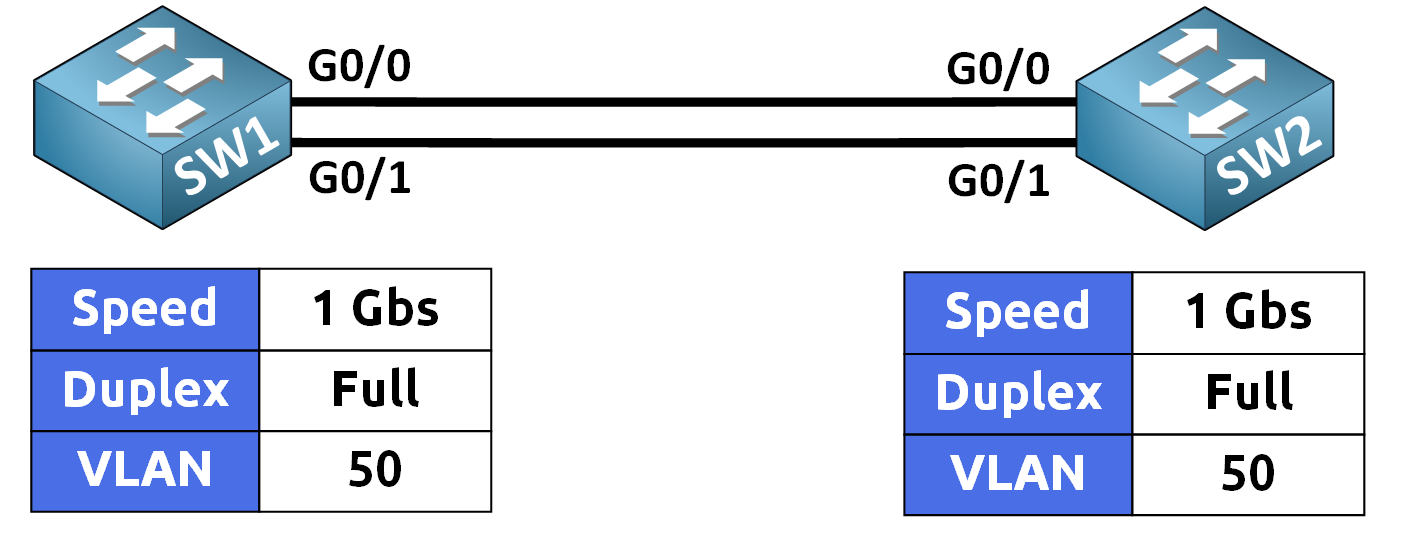

Before starting, ensure the following conditions are met:

• Interface Consistency: All interfaces in the EtherChannel must have the same speed, duplex, and interface type.

• VLAN and Trunking: For Layer 2 links, interfaces must be in the same VLAN or have identical trunk settings.

• Active Links: Ensure that each physical link is operational.

2. Steps to Configure Static EtherChannel

We will configure Static EtherChannel by activating on mode, configuring interfaces as trunks, and allowing VLAN 50 on the trunk for demonstration purposes.

🔹 Enter Interface Configuration Mode

Select the interfaces that will form the EtherChannel on each switch.

• On SW1:

SW1(config)# interface range g0/0 - 1

• On SW2:

SW2(config)# interface range g0/0 - 1

🔹 Set Static EtherChannel Mode

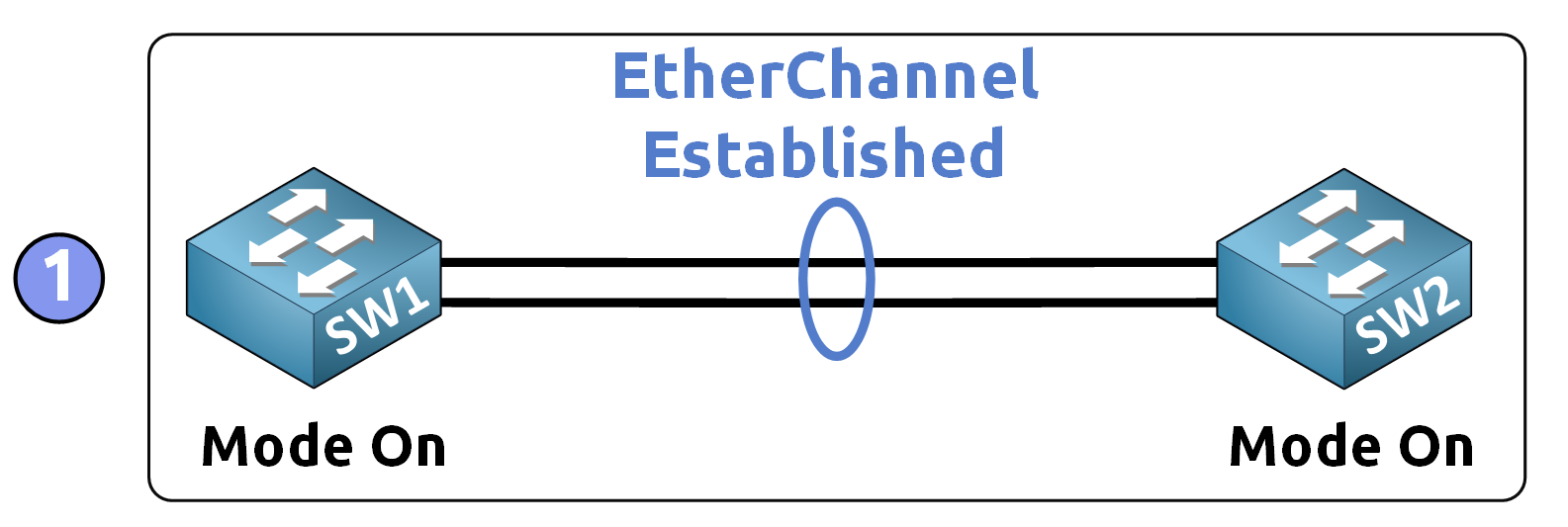

The on mode creates an EtherChannel without any negotiation protocol. This means both switches must be manually configured for EtherChannel to work. Configure it on both switches:

• SW1:

SW1(config-if-range)# channel-group 1 mode on

• SW2:

SW2(config-if-range)# channel-group 1 mode on

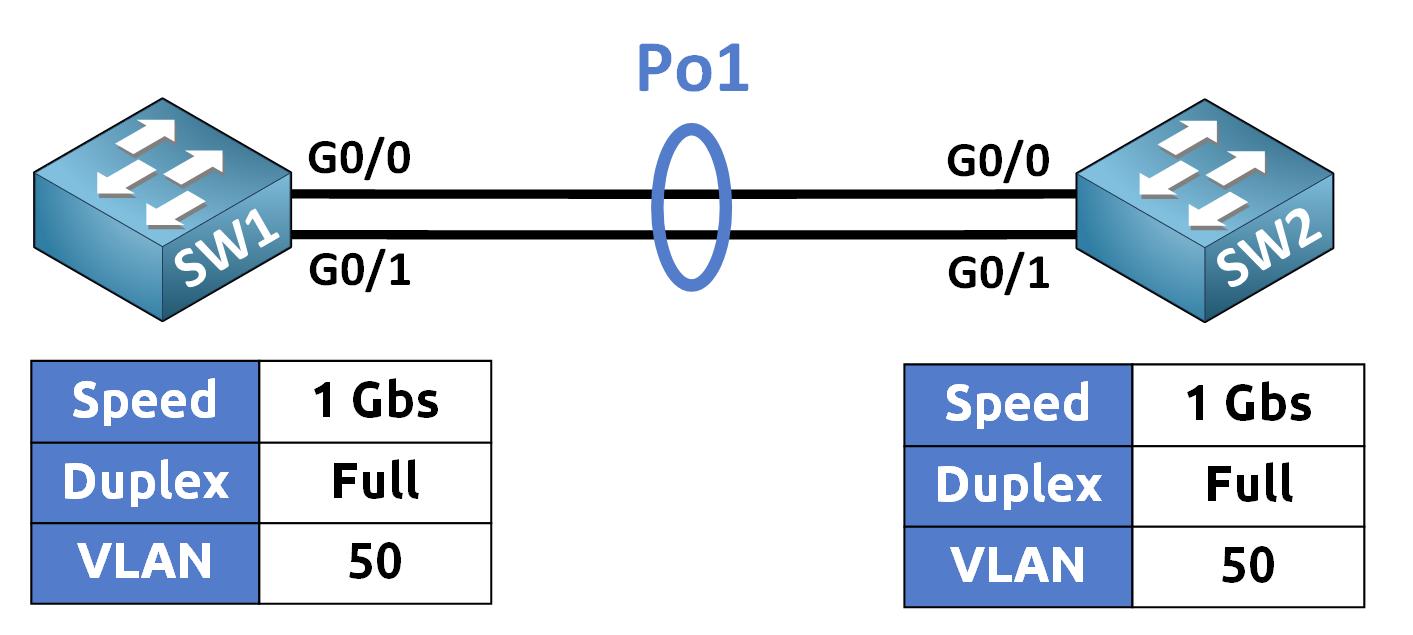

After this command is applied, a logical interface called Port-Channel 1 (Po1) is created on each switch !

🔹 Configure Trunk Mode and VLAN

For this example, Port-Channel 1 must be configured as a trunk, using 802.1q encapsulation, and allowing VLAN 50 for traffic.

• SW1:

SW1(config)# interface port-channel 1
SW1(config-if)# switchport trunk encapsulation dot1q
SW1(config-if)# switchport mode trunk
SW1(config-if)# switchport trunk allowed vlan 50

• SW2:

SW2(config)# interface port-channel 1
SW2(config-if)# switchport trunk encapsulation dot1q
SW2(config-if)# switchport mode trunk
SW2(config-if)# switchport trunk allowed vlan 50

3. Verifying the Configuration

Use the following command to check if EtherChannel is correctly formed:

• SW1:

SW1# show etherchannel summary
Flags:  D - down        P - in port-channel
        I - stand-alone  S - suspended
        H - Hot-standby (LACP only)
        R - Layer3      S - Layer2
        U - in use       N - not in use, no aggregation
        f - failed to allocate aggregator
        M - not in use, minimum links not met
        m - not in use, port not aggregated due to minimum links not met
        u - unsuitable for bundling
        w - waiting to be aggregated
        d - default port

Group  Port-channel  Protocol    Ports
------ ------------- ----------- ----------------------------------------------
1      Po1(SU)       -           Gi0/0(P) Gi0/1(P)

Here you can see the Port-Channel 1 (Po1) is active in Layer 2 mode (S) and is up (U), with no protocol displayed, indicating Static (On) mode, and that the interfaces Gi0/0 and Gi0/1 are successfully included in the EtherChannel.

• SW2:

SW2# show etherchannel summary
Flags:  D - down        P - in port-channel
        I - stand-alone  S - suspended
        H - Hot-standby (LACP only)
        R - Layer3      S - Layer2
        U - in use       N - not in use, no aggregation
        f - failed to allocate aggregator
        M - not in use, minimum links not met
        m - not in use, port not aggregated due to minimum links not met
        u - unsuitable for bundling
        w - waiting to be aggregated
        d - default port

Group  Port-channel  Protocol    Ports
------ ------------- ----------- ----------------------------------------------
1      Po1(SU)       -           Gi0/0(P) Gi0/1(P)

As well on SW2, the Port-Channel 1 (Po1) is active in Layer 2 mode and operational (indicated by SU), with no protocol listed, confirming Static (On) mode, and the interfaces Gi0/0 and Gi0/1 are part of the EtherChannel.

Verify the Trunk Configuration

To verify that the trunk is correctly configured on the Port-Channel interface and that VLAN 50 is permitted, use the show interfaces trunk command.

• SW1:

SW1# show interfaces trunk
Port        Mode         Encapsulation  Status        Native vlan
Po1         on           802.1q         trunking      1

Port        Vlans allowed on trunk
Po1         50

The output shows that Port-Channel 1 (Po1) is active as a trunk with 802.1q encapsulation, and VLAN 50 is successfully permitted on the trunk.

• SW2:

SW2# show interfaces trunk
Port        Mode         Encapsulation  Status        Native vlan
Po1         on           802.1q         trunking      1

Port        Vlans allowed on trunk
Po1         50

The output verifies that Port-Channel 1 (Po1) on SW2 is active as a trunk with 802.1q encapsulation, and VLAN 50 is successfully permitted on the trunk.

4. Conclusion

The Static EtherChannel configuration is now complete!

• Port-Channel 1 (Po1) aggregates two physical interfaces into one logical link.

• Trunk mode is properly configured, allowing VLAN 50 traffic
  .
• Increased bandwidth and redundancy by utilizing both interfaces efficiently.

⚠️ Important reminder: Since Static EtherChannel uses on mode, both sides must be manually configured correctly. If there is a mismatch, it can lead to connectivity issues.

Next Lesson: We will explore LACP EtherChannel, which provides dynamic negotiation and better flexibility!
