BPDU Guard

1. What is BPDU Guard ?

Have you ever wondered what is BPDU Guard and how it protects your network?
Let’s make it simple and start with an example.

In the diagram above, we see a typical STP topology with three switches: SW1, SW2, and SW3.

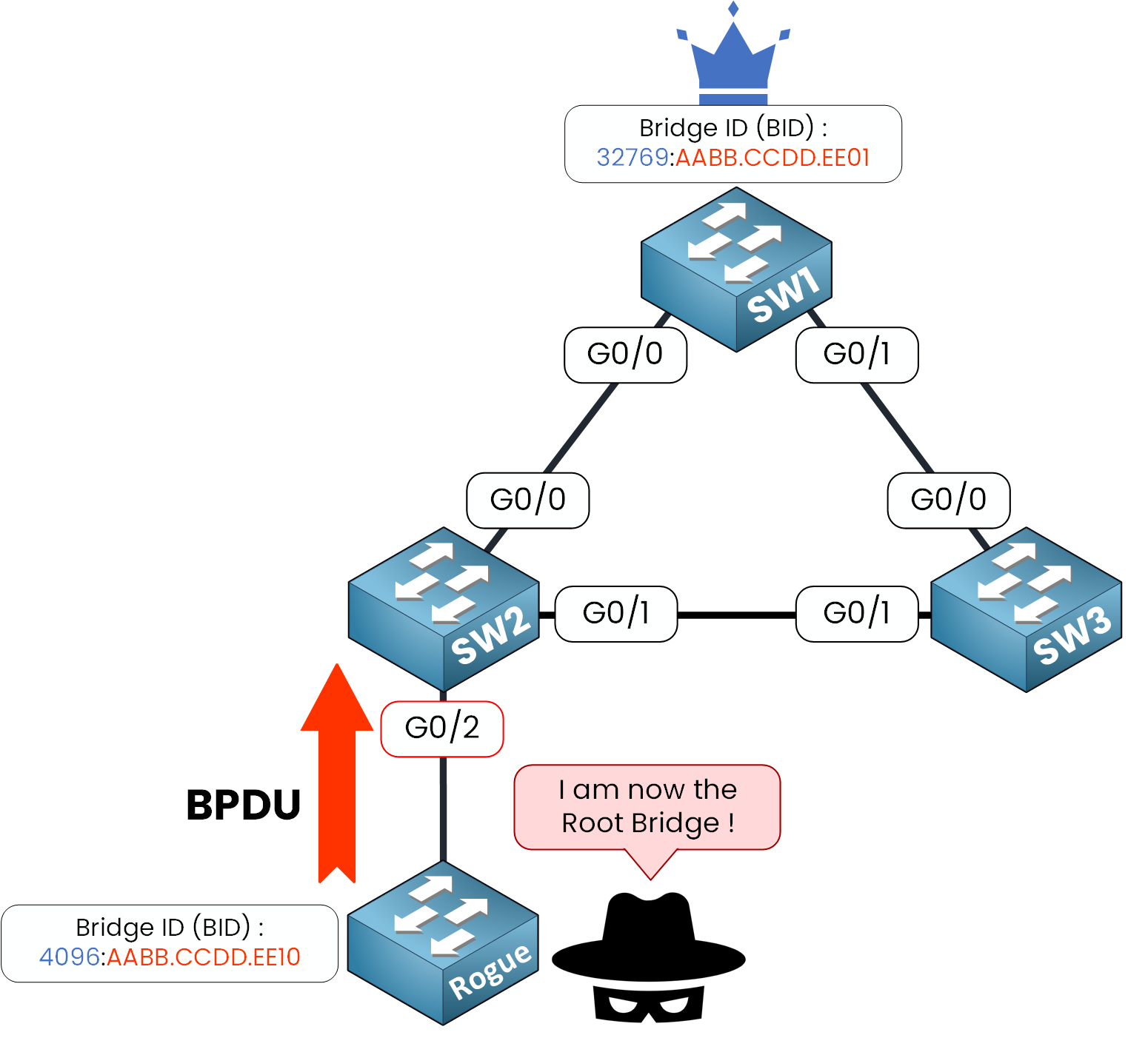

STP topology where a rogue switch becomes Root Bridge after sending a BPDU – example of what BPDU Guard prevents
Figure 1 – Rogue switch sends BPDUs to claim Root Bridge role
  • SW1 is the Root Bridge, with Bridge ID 32769:AABB.CCDD.EE01
  • SW2 has a port (G0/2) configured with PortFast, normally meant for end devices.

But here’s the problem:

A rogue switch gets connected to that access port. Instead of staying quiet, it sends BPDUs with a lower Bridge Priority: 4096:AABB.CCDD.EE10 better than the current Root Bridge.

Since BPDU Guard is not enabled, SW2 accepts the BPDU and forward the BPDU into the STP topology.

Without BPDU Guard

The Rogue Switch win Root Bridge Election because it advertises a better priority 4096 against SW1 priority 32769, it’s now selected as the new Root Bridge.

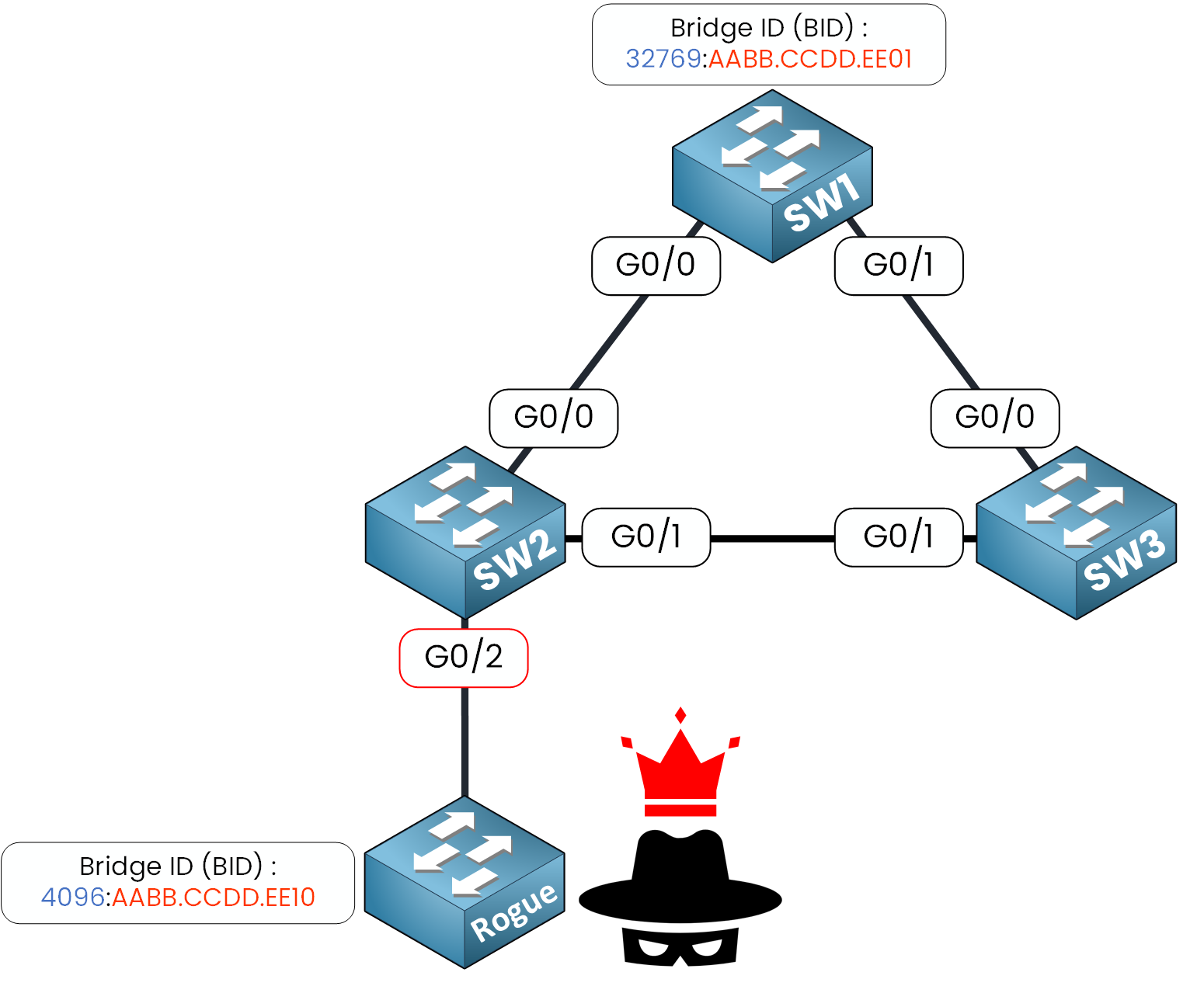

What is BPDU Guard: rogue switch becomes Root Bridge by using a lower Bridge ID in STP topology
Figure 2 – Rogue switch becomes Root Bridge by sending superior BPDUs

Your entire Spanning Tree topology is now compromised and all of this started from a single access port not properly secured. This is exactly what BPDU Guard feature is designed to prevent.

Solution: Enabling BPDU Guard

To prevent this situation, BPDU Guard must be applied to the PortFast-enabled port.
BPDU Guard discard any incoming BPDU and placed the port into an err-disable state (down/down).

This ensures that access ports typically connected to end-user devices like PCs or printers can’t participate in STP.

With BPDU Guard

Let’s review our example with BPDU Guard enabled on the interface connected to the rogue switch.

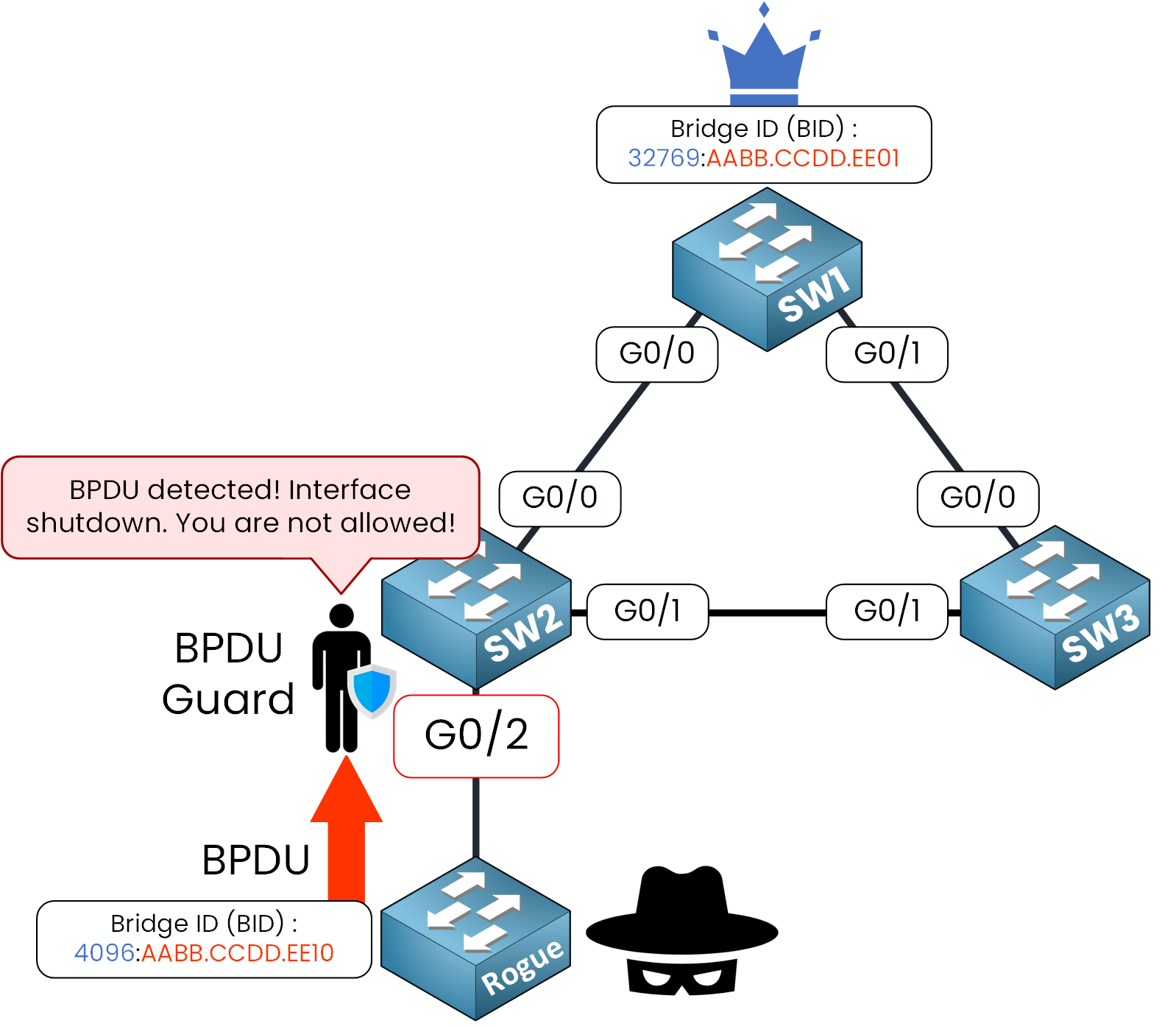

What is BPDU Guard: port G0/2 disabled after rogue switch sends BPDU, blocked by BPDU Guard
Figure 3 – BPDU Guard blocks the rogue switch by shutting down the interface

The BPDU Guard feature detects the incoming BPDU on the interface and immediately disables the port to protect the network.

*Dec  8 12:58:28.065: %SPANTREE-2-BLOCK_BPDUGUARD: Received BPDU on port Gi0/2 with BPDU Guard enabled. Disabling port.

*Dec  8 12:58:28.066: %PM-4-ERR_DISABLE: bpduguard error detected on Gi0/2, putting Gi0/2 in err-disable state

*Dec  8 12:58:29.073: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/2, changed state to down

*Dec  8 12:58:30.109: %LINK-3-UPDOWN: Interface GigabitEthernet0/2, changed state to down

As you can see above, BPDU was received on interface G0/2 with BPDU Guard enabled, this event trigger the shutdown of the interface.

2. Configuring BPDU Guard

Before diving into the configuration, let’s clarify an important point: BPDU Guard and PortFast are separate features.

While they are often used together, they can be configured independently based on your network requirements.

If you want end-user devices (like PCs or printers) to access the network instantly and be protected from rogue switches, you should activate both PortFast and BPDU Guard on the same port.

In this example, we will configure :

  • PortFast to skip the usual STP State delay.
  • BPDU Guard to shut down the port if an unexpected BPDU is received.

Let’s apply the PortFast Feature first on interface G0/2:

Switch configuration example applying BPDU Guard and PortFast on interface G0/2 to protect against rogue BPDUs
Figure 4 – Configuring PortFast on SW2 interface G0/2 before enabling BPDU Guard

Now we can configure BPDU Guard.

BPDU Guard can be configured in two ways:

  1. On Individual Ports: Applied manually to each specific port.
  2. Globally: Automatically applied to all interface already configured with PortFast.

Enabling BPDU Guard on Individual Ports

Configuration Steps:

  1. Enter interface configuration mode:
SW2(config)# interface GigabitEthernet0/2

2. Enable BPDU Guard on the interface:

SW2(config-if)# spanning-tree bpduguard enable

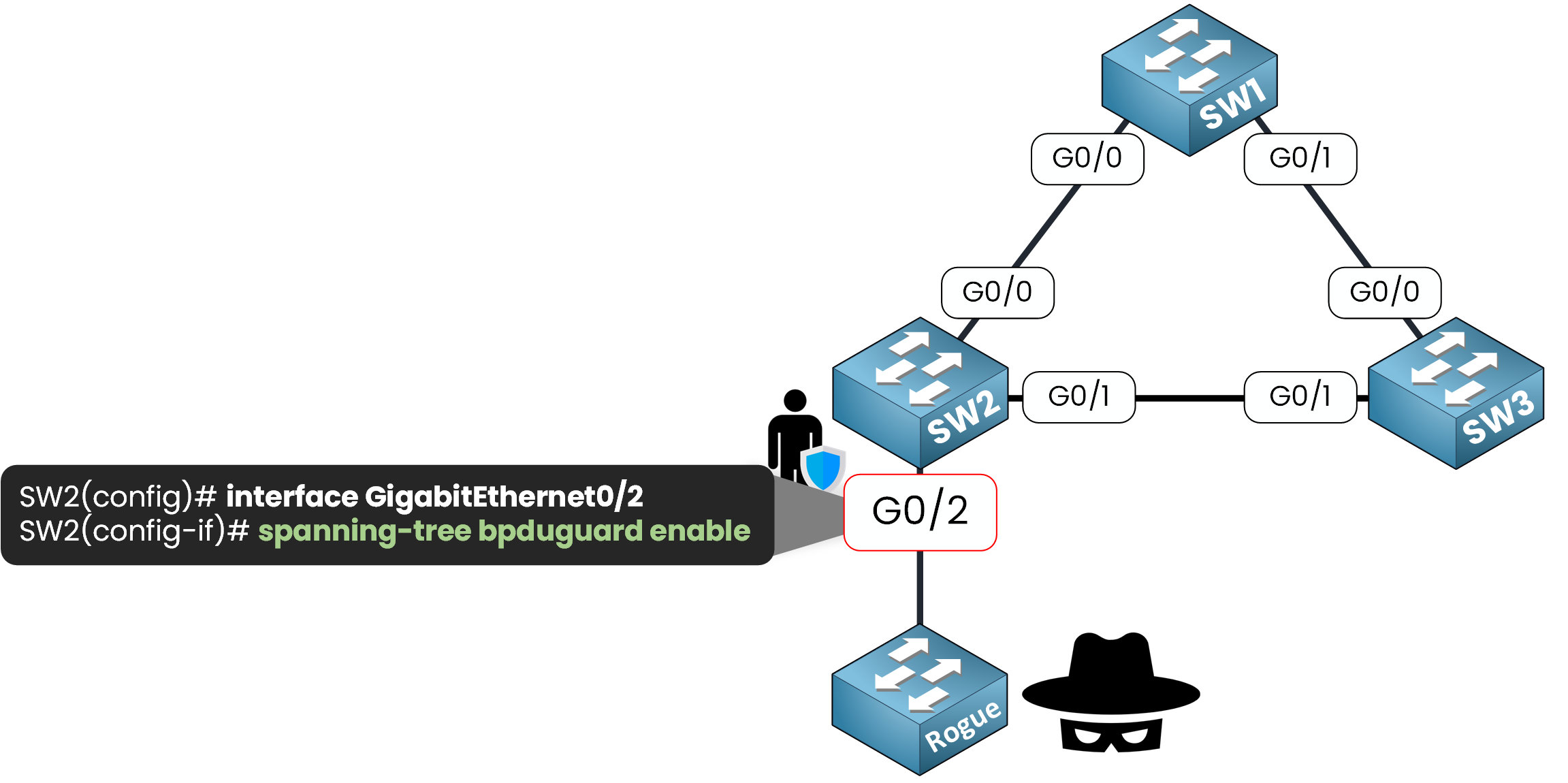

BPDU Guard configuration on interface G0/2 of SW2 using CLI commands to protect access ports from rogue switches
Figure 5 – Enabling BPDU Guard on interface G0/2

Verifying BPDU Guard Status

To confirm BPDU Guard is enabled and active, we can use the show spanning-tree interface g0/2 detail command:

SW2(config-if)# show spanning-tree interface g0/2 detail
 Port 3 (GigabitEthernet0/2) of VLAN0001 is designated forwarding
   Port path cost 4, Port priority 128, Port Identifier 128.3.
   Designated root has priority 32769, address 50e2.aa04.6b00
   Designated bridge has priority 32769, address 50e2.aa04.6b00
   Designated port id is 128.3, designated path cost 0
   Timers: message age 0, forward delay 0, hold 0
   Number of transitions to forwarding state: 1
   The port is in the portfast edge mode
   Link type is point-to-point by default
   Bpdu guard is enabled
   BPDU: sent 3, received 0

As you can see in the output, BPDU guard feature is enabled!

Behavior When a BPDU is Received

Let’s retake our example, the Rogue Switch send a BPDU and BPDU Guard is enabled:

BPDU Guard blocks a rogue switch on interface G0/2 by disabling the port after receiving a BPDU
Figure 6 – BPDU Guard shuts down the port and places it in err-disabled state

The interface is immediately shut down and placed into an err-disabled state.

You can verify this using by looking at the interface status:

SW2# show interfaces g0/2
GigabitEthernet0/2 is down, line protocol is down (err-disabled)
!output omitted

The line protocol is down and the state err-disabled state appears as expected.

Disabling BPDU Guard on Individual Ports

In some situations, you may need to disabled BPDU Guard on a specific interface. This can be done directly in interface configuration mode:

Disabling BPDU Guard on SW2 interface G0/2 using CLI to allow BPDU traffic from the connected device
Figure 7 – Disabling BPDU Guard on SW2 interface G0/2
SW2(config)# int g0/2
SW2(config-if)# spanning-tree bpduguard disable

This command removes BPDU Guard protection from the selected port only.

Enabling BPDU Guard Globally

BPDU Guard can also be enabled globally, allowing it to be automatically applied to all interface configured with PortFast.

SW2(config)# spanning-tree portfast bpduguard default

Make sure to always check the interface on your switch configured with PortFast before applying this command.

3. Understanding ErrDisable State

We have see when BPDU Guard detects a BPDU it immediately shuts the port down to protect the network. The interface enters the err-disabled state with a status of down/down.

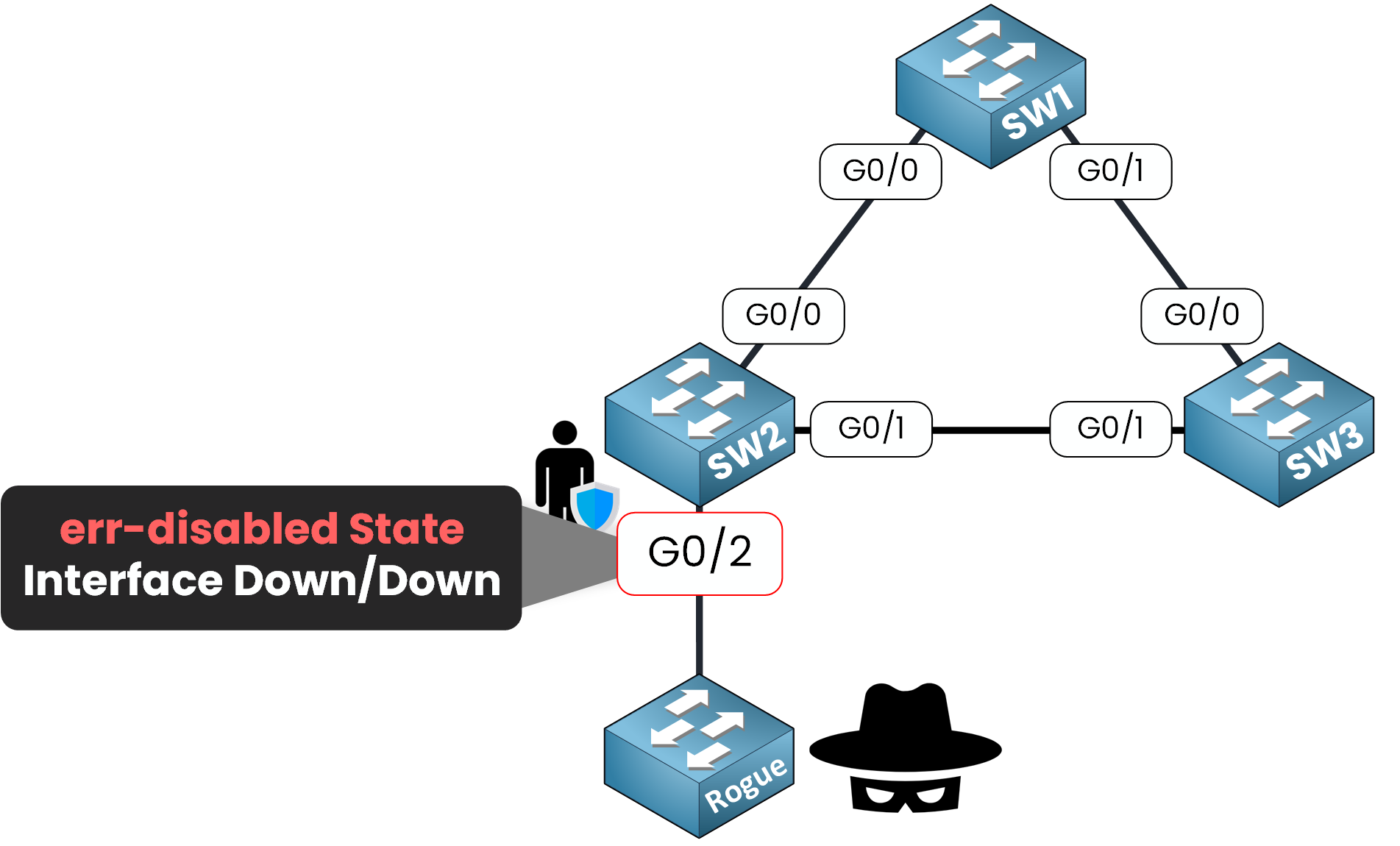

Interface G0/2 in err-disabled state after rogue switch sends BPDU and is blocked by BPDU Guard
Figure 8 – Interface enters err-disabled state after receiving BPDU from rogue switch

Now that the interface is down, as a Network Engineer you need to remove the Rogue Device before attempting to recover the interface. Then you can recover the port by using one of the two recovering methods for ErrDisable State.

4. Recovering Ports from ErrDisable State

The first method we’ll look at is Manual Recovery, it’s very simple:

Manual Recovery

You can reset the port manually by using the shutdown and no shutdown command :

SW2(config)# interface g0/2
SW2(config-if)# shutdown
SW2(config-if)# no shutdown

The interface will return to the UP/UP state, and if no rogue device sends BPDUs again, it will remain operational.

SW2# show interfaces g0/2
GigabitEthernet0/2 is up, line protocol is up (connected)
!output omitted

Automatic Recovery (ErrDisable Recovery)

The second method is the Automatic Recovery also known as ErrDisable Recovery, Cisco switches have a feature to recover ports automatically 300 seconds after the event.
By default, this mechanism is disabled. You can check its current status with the show errdisable recovery:

SW2# show errdisable recovery
ErrDisable Reason            Timer Status
-----------------            --------------
arp-inspection               Disabled
bpduguard                    Disabled
!output omitted

Timer interval: 300 seconds

Interfaces that will be enabled at the next timeout:

Here you can see ErrDisable Reason for bpduguard is disabled.

Enabling Automatic Recovery

To enable ErrDisable Recovery for the bpduguard cause we use:

SW2(config)# errdisable recovery cause bpduguard

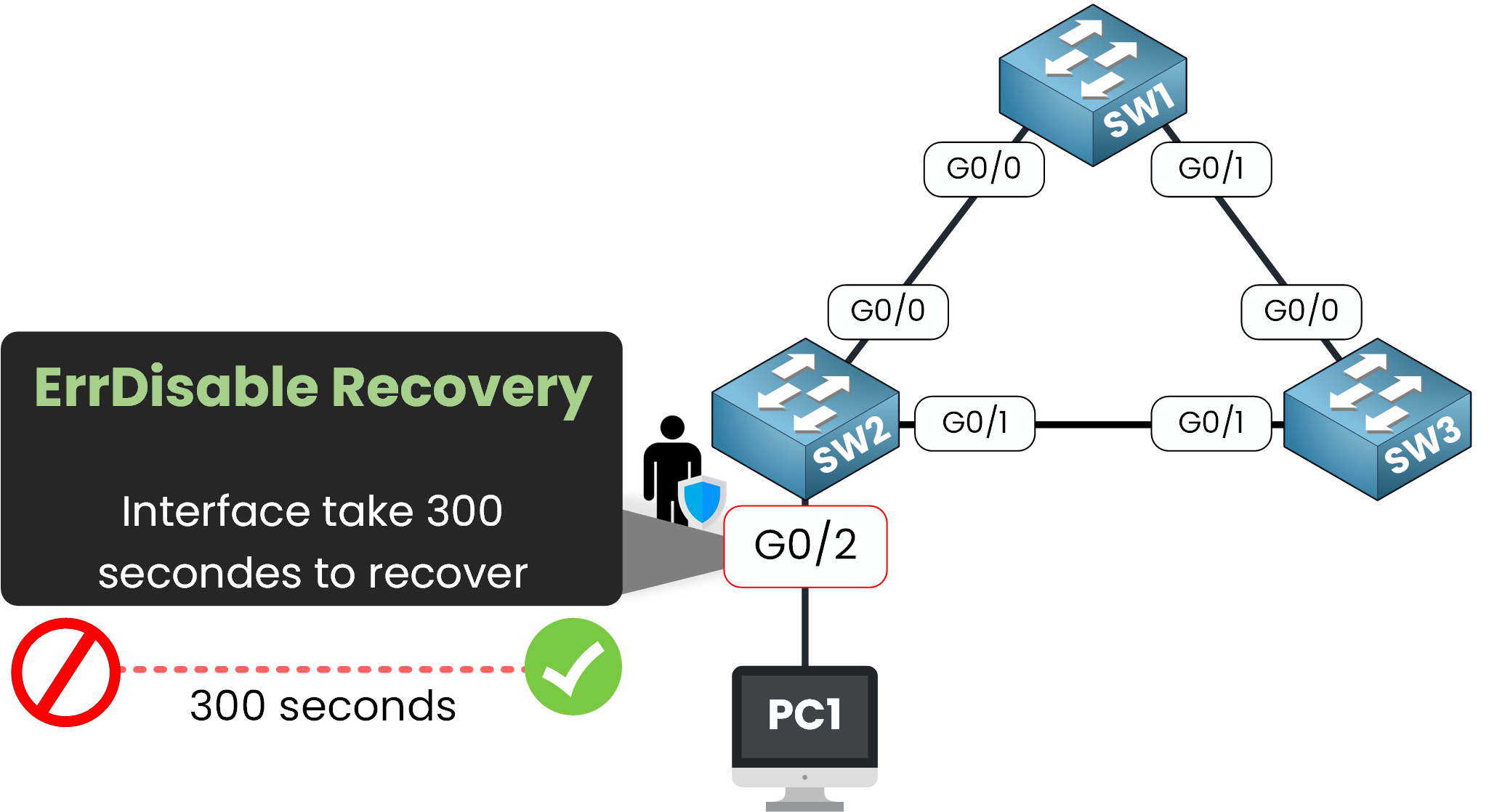

Enabling automatic ErrDisable recovery for BPDU Guard with a 300-second timer on interface G0/2
Figure 9 – ErrDisable Recovery automatically re-enables the port after 300 seconds

The BPDU Guard cause for recovery is enabled :

SW2# show errdisable recovery
ErrDisable Reason            Timer Status
-----------------            --------------
arp-inspection               Disabled
bpduguard                    Enabled
!output omitted

Timer interval: 300 seconds

Interfaces that will be enabled at the next timeout:

Interface       Errdisable reason       Time left(sec)
---------       -----------------       --------------
Gi0/2                  bpduguard          299

In this example, Gi0/2 is scheduled to recover in 299 seconds.

What Happens During Recovery

Once the timer expires, the port is automatically restored to the up/up state. The following logs illustrate the recovery process:

*Dec  8 15:30:45.261: %PM-4-ERR_RECOVER: Attempting to recover from bpduguard err-disable state on Gi0/2
*Dec  8 15:30:47.290: %LINK-3-UPDOWN: Interface GigabitEthernet0/2, changed state to up
*Dec  8 15:30:48.290: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/2, changed state to up

Adjusting the Recovery Timer

We can adjust the default recovery timer of 300 seconds. You can modify it to any value between 30 and 86400 seconds.

If we check the available range:

SW2(config)# errdisable recovery interval ?
  <30-86400>  timer-interval(sec)

For example we set a custom interval of 30 seconds:

SW2(config)# errdisable recovery interval 30

This timer applies to all active errdisable recovery causes.

5. Conclusion

BPDU Guard disables a port immediately if it receives a BPDU, as long as BPDU Guard is enabled on that port. This prevents unauthorized switches from interfering with the Spanning Tree topology.

  • Why it’s important – A single BPDU on an access port can disrupt STP. BPDU Guard stops it instantly.
  • How it behaves – When triggered, the port is placed into the err-disabled state (down/down).
  • How to configure it – Per port: spanning-tree bpduguard enable | Globally: spanning-tree portfast bpduguard default
  • How to recover the port – Manually: using shutdown / no shutdown | Automatically: with errdisable recovery cause bpduguard

In the next lesson, we’ll explore BPDU Filter, a related feature that lets you control whether ports send or process BPDUs, giving you more flexibility in edge port behavior.
